CPT60035

DIODE MOD SCHOT 35V 300A TO244AB

Manufacturer: Microsemi Corporation

Categories: Diode Arrays

Quality Control: Learn More

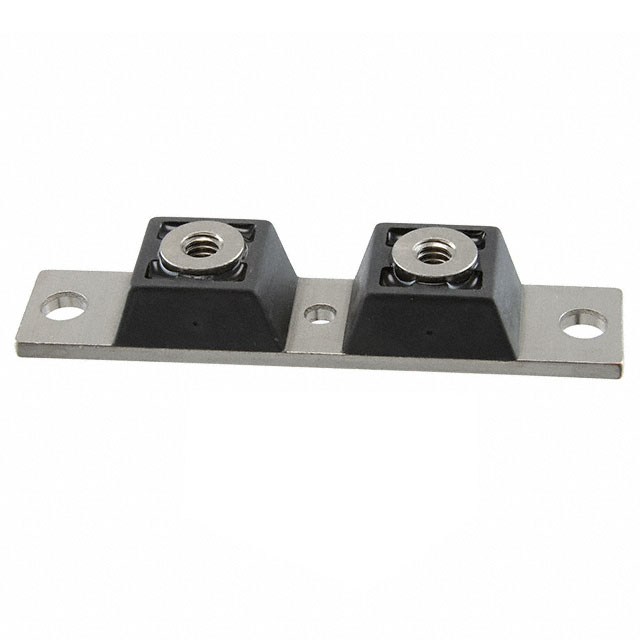

The Microsemi Corporation CPT60035 is a Schottky diode module featuring a common cathode configuration. This component is rated for a maximum DC reverse voltage of 35V and offers a substantial average rectified current of 300A per diode. The forward voltage drop at its maximum current is specified at 650mV. Designed for robust performance, the CPT60035 exhibits a reverse leakage current of 8 mA at 35V. Its fast recovery time is characterized as less than or equal to 500ns for currents exceeding 200mA. This diode array is housed in a TO-244AB package, facilitating chassis mounting for efficient thermal management. The CPT60035 finds application in high-power switching power supplies and industrial motor control systems. Supplied in bulk packaging.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: 22 week(s)Product Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseTO-244AB
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)300A
Supplier Device PackageTO-244AB
Voltage - DC Reverse (Vr) (Max)35 V
Voltage - Forward (Vf) (Max) @ If650 mV @ 300 A
Current - Reverse Leakage @ Vr8 mA @ 35 V
