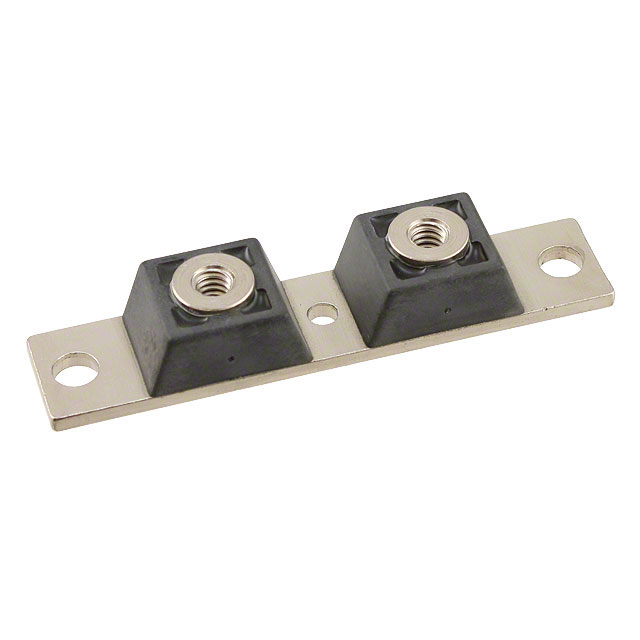

CPT600150D
DIODE MOD SCHOT 150V 300A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT600150D is a Schottky diode module featuring a 1 pair series connection configuration. This component is designed for chassis mounting, utilizing the MD3CC package. It offers a maximum DC reverse voltage of 150 V and a substantial forward current capability of 300 A, with a typical forward voltage drop of 850 mV at this current. The diode exhibits a reverse leakage of 7 mA at its maximum reverse voltage. Its fast recovery time, characterized as <= 500ns for > 200mA (Io), makes it suitable for high-power applications. This device finds utility in industrial power supplies, motor control systems, and electric vehicle charging infrastructure.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Series Connection |
| Current - Average Rectified (Io) (per Diode) | 300A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 150 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 300 A |
| Current - Reverse Leakage @ Vr | 7 mA @ 150 V |
