CPT600100

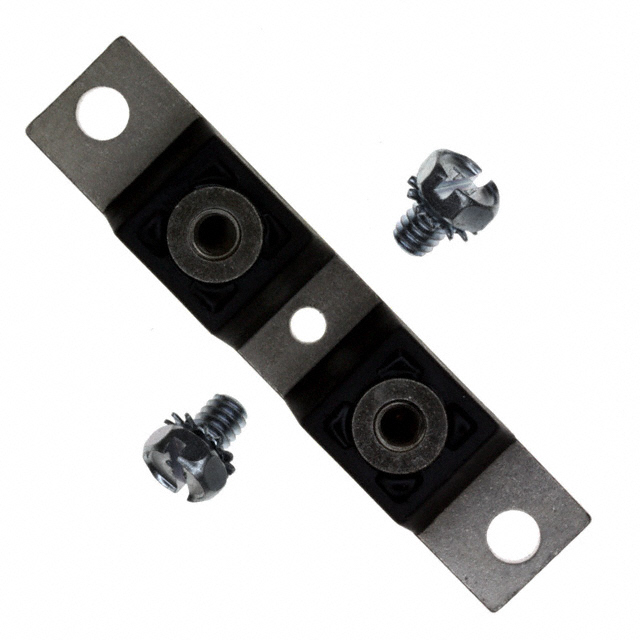

DIODE MOD SCHOT 100V 300A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT600100 is a Schottky diode array featuring a common cathode configuration for a single pair of diodes. This component offers a maximum DC reverse voltage of 100V and a substantial average rectified current per diode of 300A. The forward voltage drop is specified at 850mV at 300A. Exhibiting a reverse leakage current of 8mA at 100V, this device is designed for fast recovery characteristics, typically less than 500ns for currents above 200mA. The CPT600100 is housed in a Twin Tower package for efficient chassis mounting and is supplied in bulk packaging. Its robust specifications make it suitable for applications in power supply rectification, motor control, and high-current switching power applications within industrial and automotive sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Twin Tower |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 300A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 100 V |
| Voltage - Forward (Vf) (Max) @ If | 850 mV @ 300 A |
| Current - Reverse Leakage @ Vr | 8 mA @ 100 V |
