CPT50145

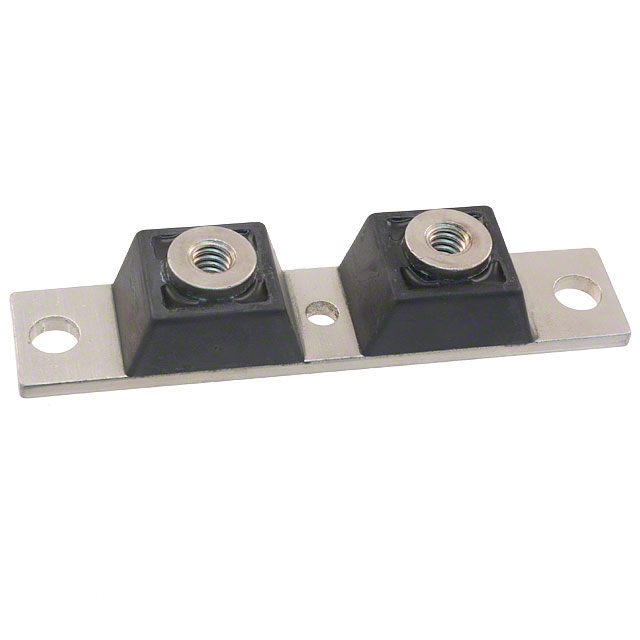

DIODE MOD SCHOTT 45V 250A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT50145 is a Schottky diode array featuring a common cathode configuration. This component offers a maximum DC reverse voltage (Vr) of 45V and a substantial average rectified current (Io) per diode of 250A. The forward voltage drop (Vf) is rated at a maximum of 550mV at 250A, with a reverse leakage current of 12mA at 45V. Designed for chassis mounting, the CPT50145 utilizes the Twin Tower package (MD3CC). Its fast recovery time, specified as less than or equal to 500ns for currents greater than 200mA, makes it suitable for high-power switching applications. This device finds utility in industries such as power supply design, industrial motor control, and renewable energy systems requiring efficient rectification and low forward voltage characteristics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 250A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 550 mV @ 250 A |
| Current - Reverse Leakage @ Vr | 12 mA @ 45 V |
