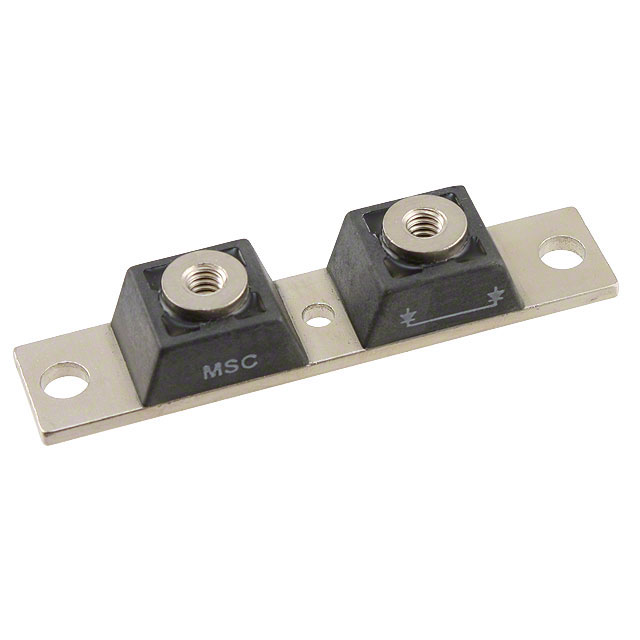

CPT50060
DIODE MOD SCHOTT 60V 250A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT50060 is a Schottky diode array featuring a common cathode configuration. This component is designed for high-power applications, offering a maximum reverse voltage of 60V and an average rectified current of 250A per diode, with a forward voltage drop of 730mV at 250A. The CPT50060 exhibits a reverse leakage current of 8mA at 60V and is classified as fast recovery, with a speed rating of <= 500ns, > 200mA (Io). It is housed in a Twin Tower package for chassis mounting, suitable for demanding environments. This device is utilized in power supply rectification, motor control, and industrial power conversion systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Twin Tower |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 250A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 730 mV @ 250 A |
| Current - Reverse Leakage @ Vr | 8 mA @ 60 V |
