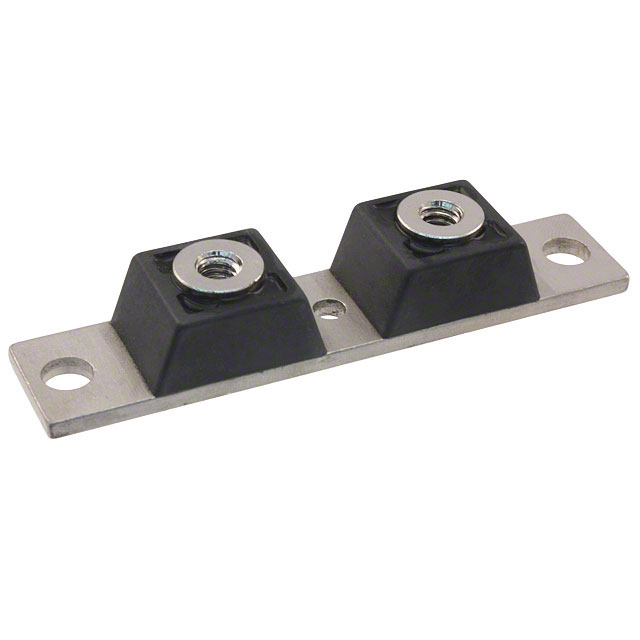

CPT40145
DIODE MOD SCHOTT 45V 200A MD3CCManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT40145 is a Schottky diode array featuring a common cathode configuration. This component operates with a maximum DC reverse voltage (Vr) of 45 V and offers a high forward current handling capability of 200 A. The forward voltage drop (Vf) at 200 A is a maximum of 570 mV. Reverse leakage current is rated at 10 mA at 45 V. Designed for chassis mounting, the CPT40145 utilizes the MD3CC package. Its fast recovery characteristics, with a speed typically less than 500 ns for currents exceeding 200 mA, make it suitable for demanding power supply and power conversion applications in industries such as industrial automation and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 200A |
| Supplier Device Package | MD3CC |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 570 mV @ 200 A |
| Current - Reverse Leakage @ Vr | 10 mA @ 45 V |
