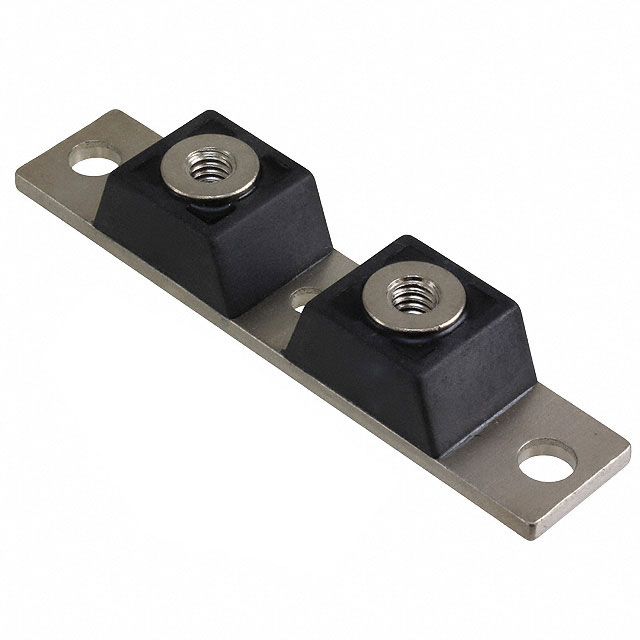

CPT40090

DIODE MOD SCHOT 90V 200A TO244AB

Manufacturer: Microsemi Corporation

Categories: Diode Arrays

Quality Control: Learn More

Microsemi Corporation CPT40090 is a high-performance Schottky diode array featuring a common cathode configuration. This component offers a maximum DC reverse voltage of 90V and a substantial average rectified current capability of 200A per diode. The low forward voltage drop, specified at 890mV at 200A, contributes to efficient power handling. With a reverse leakage current of 5mA at 90V, this device is suitable for applications requiring robust rectification and minimal power dissipation. The TO-244AB package facilitates chassis mounting for effective thermal management. This diode array finds application in power supply units, motor drives, and industrial power control systems where high current density and reliable performance are critical.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseTO-244AB
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)200A
Supplier Device PackageTO-244AB
Voltage - DC Reverse (Vr) (Max)90 V
Voltage - Forward (Vf) (Max) @ If890 mV @ 200 A
Current - Reverse Leakage @ Vr5 mA @ 90 V
