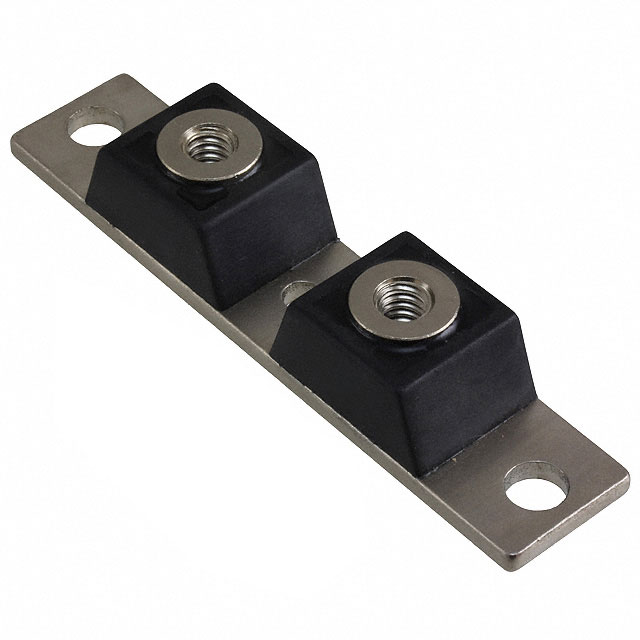

CPT400100D

DIODE MOD SCHOTT 100V TO244AB

Manufacturer: Microsemi Corporation

Categories: Diode Arrays

Quality Control: Learn More

Microsemi Corporation CPT400100D is a Schottky diode array featuring a 1 pair series connection configuration. This component offers a maximum DC reverse voltage (Vr) of 100 V and a significant average rectified current (Io) per diode of 200A. The forward voltage drop (Vf) at 200A is rated at a maximum of 890 mV. Designed for robust performance, the CPT400100D exhibits a reverse leakage current of 5 mA at 100 V. Its speed characteristic is noted as Fast Recovery (< 500ns, > 200mA Io). The TO-244AB package facilitates efficient chassis mounting. This diode array is suitable for applications in power supply rectification and high-current switching circuits across various industrial sectors including telecommunications and power generation. The product is supplied in bulk packaging.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseTO-244AB
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Diode Configuration1 Pair Series Connection
Current - Average Rectified (Io) (per Diode)200A
Supplier Device PackageTO-244AB
Voltage - DC Reverse (Vr) (Max)100 V
Voltage - Forward (Vf) (Max) @ If890 mV @ 200 A
Current - Reverse Leakage @ Vr5 mA @ 100 V
