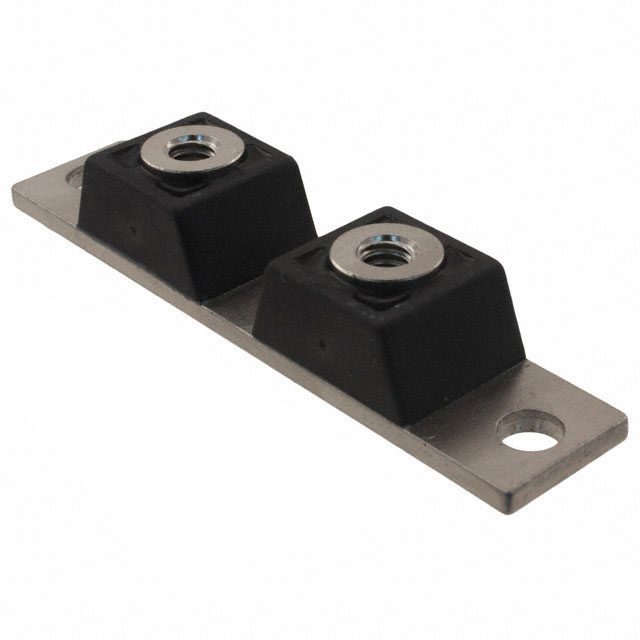

CPT400100

DIODE MOD SCHOT 100V 200A 2TOWER

Manufacturer: Microsemi Corporation

Categories: Diode Arrays

Quality Control: Learn More

Microsemi Corporation CPT400100 is a Schottky diode array featuring a common cathode configuration. This electronic component offers a maximum DC reverse voltage (Vr) of 100 V and a substantial average rectified current (Io) of 200 A per diode. The forward voltage (Vf) is 890 mV at 200 A, with a reverse leakage current of 5 mA at 100 V. Designed for efficient power management, the CPT400100 utilizes a Twin Tower package for chassis mounting, facilitating robust thermal performance. Its fast recovery speed, less than 500 ns for currents exceeding 200 mA, makes it suitable for demanding applications in power supply units, motor control, and industrial automation. This component is supplied in bulk packaging.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Bulk
Technical Details:
PackagingBulk
Package / CaseTwin Tower
Mounting TypeChassis Mount
SpeedFast Recovery =< 500ns, > 200mA (Io)
TechnologySchottky
Diode Configuration1 Pair Common Cathode
Current - Average Rectified (Io) (per Diode)200A
Supplier Device PackageTwin Tower
Voltage - DC Reverse (Vr) (Max)100 V
Voltage - Forward (Vf) (Max) @ If890 mV @ 200 A
Current - Reverse Leakage @ Vr5 mA @ 100 V
