CPT30060

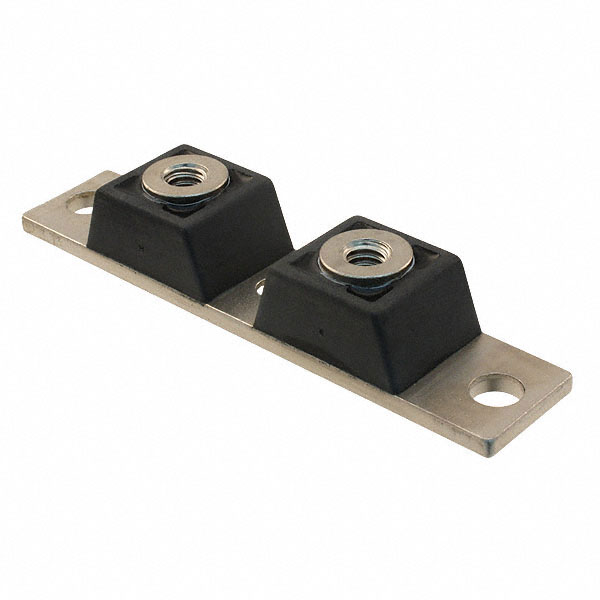

DIODE MOD SCHOTT 60V 150A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
The Microsemi Corporation CPT30060 is a Schottky diode array featuring a 1 pair common cathode configuration. This component is designed for high-power rectification with a maximum DC reverse voltage (Vr) of 60V and an average rectified current (Io) per diode of 150A. It exhibits a forward voltage (Vf) of 820mV at 200A and a reverse leakage current of 4mA at 60V. The CPT30060 utilizes Twin Tower packaging for efficient thermal management and is designed for chassis mounting. Its fast recovery speed, characterized as <= 500ns and > 200mA (Io), makes it suitable for demanding applications in power supply, industrial motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 150A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 60 V |
| Voltage - Forward (Vf) (Max) @ If | 820 mV @ 200 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 60 V |
