CPT30050
DIODE MOD SCHOTT 50V 150A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More

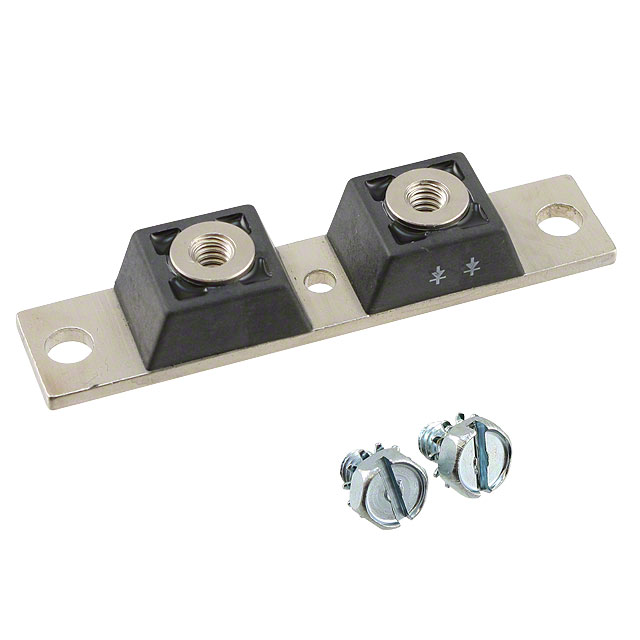

Microsemi Corporation CPT30050 is a Schottky diode array featuring a common cathode configuration. This component offers a DC reverse voltage rating of 50 V and a maximum forward voltage of 760 mV at 200 A. With an average rectified current (Io) per diode of 150 A, it is designed for high-power applications. The reverse leakage current is specified at 4 mA at 50 V. The diode array is housed in a Twin Tower package with a chassis mount for efficient thermal management. This device is suitable for use in power supply rectification, motor control, and welding equipment industries. The technology employed is Schottky, contributing to its fast switching characteristics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 150A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 50 V |
| Voltage - Forward (Vf) (Max) @ If | 760 mV @ 200 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 50 V |
