CPT30045

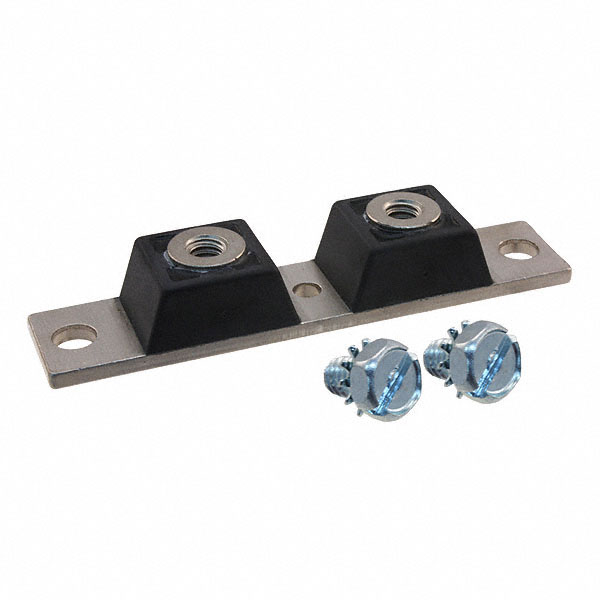

DIODE MOD SCHOTT 45V 150A 2TOWERManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation CPT30045 is a high-performance Schottky diode array featuring a common cathode configuration. This component is rated for a maximum DC reverse voltage (Vr) of 45V and an average rectified current (Io) of 150A per diode. The forward voltage drop (Vf) is optimized at 760mV at 200A, with a low reverse leakage current of 4mA at 45V. The CPT30045 is designed for chassis mounting, utilizing the MD3CC package, also known as a Twin Tower configuration, suitable for demanding applications. Its fast recovery characteristics, with a speed less than 500ns for currents greater than 200mA, make it ideal for power supply rectification, motor control, and renewable energy systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MD3CC |
| Mounting Type | Chassis Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 150A |
| Supplier Device Package | Twin Tower |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 760 mV @ 200 A |
| Current - Reverse Leakage @ Vr | 4 mA @ 45 V |
