1N6660

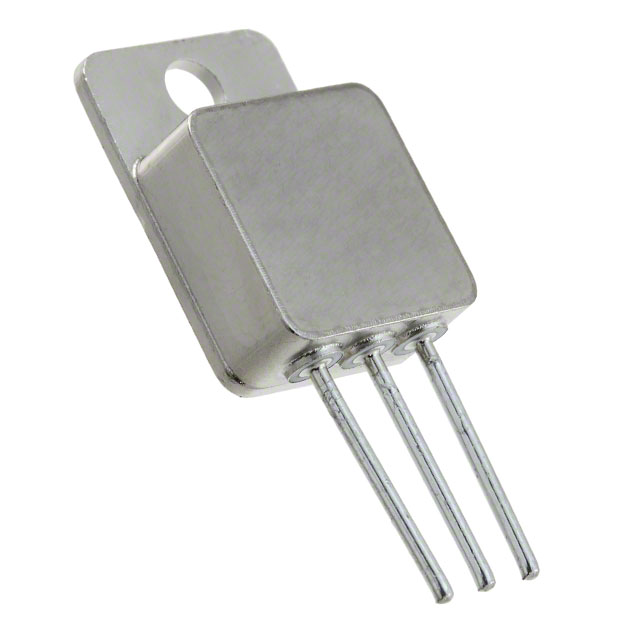

DIODE ARR SCHOTT 45V 15A TO254AAManufacturer: Microsemi Corporation
Categories: Diode Arrays
Quality Control: Learn More
Microsemi Corporation's 1N6660 is a dual Schottky diode array featuring a common cathode configuration. This component offers a maximum DC reverse voltage (Vr) of 45V and a substantial average rectified current (Io) of 15A per diode. With a low forward voltage (Vf) of 1V at 30A, it is designed for efficient power rectification. The diode array exhibits fast recovery characteristics, with speeds less than or equal to 500ns for currents greater than 200mA. The reverse leakage current is specified at 1 mA at 45V. Packaged in a TO-254AA (straight leads) surface-mount configuration, the 1N6660 is suitable for demanding applications across power supply units and industrial control systems. Its operating junction temperature range is -65°C to 150°C.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-254-3, TO-254AA (Straight Leads) |
| Mounting Type | Surface Mount |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Technology | Schottky |
| Diode Configuration | 1 Pair Common Cathode |
| Current - Average Rectified (Io) (per Diode) | 15A |
| Supplier Device Package | TO-254AA |
| Operating Temperature - Junction | -65°C ~ 150°C |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 30 A |
| Current - Reverse Leakage @ Vr | 1 mA @ 45 V |
