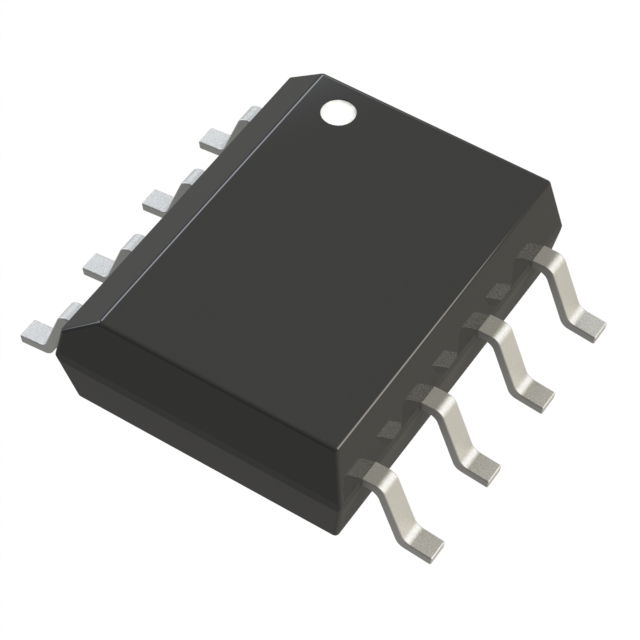

NX2114ACSTR
IC PWM CONTROLLERManufacturer: Microsemi Corporation
Categories: DC DC Switching Controllers
Quality Control: Learn More
Microsemi Corporation's NX2114ACSTR is a high-performance, positive output, step-down DC-DC controller IC. This PWM controller operates with a switching frequency of 600kHz, offering efficient power conversion in a compact 8-SOIC package. Featuring soft-start and enable control functions, the NX2114ACSTR is designed with a maximum duty cycle of 94% and a single output phase. Its synchronous rectifier capability enhances overall efficiency. This component is suitable for applications requiring robust step-down voltage regulation, including industrial power supplies and consumer electronics. The device operates within a supply voltage range of 4.5V to 5.5V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Output Type | PWM |
| Mounting Type | Surface Mount |
| Function | Step-Down |
| Operating Temperature | 0°C ~ 70°C |
| Output Configuration | Positive |
| Frequency - Switching | 600kHz |
| Topology | Buck |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 5.5V |
| Supplier Device Package | 8-SOIC |
| Synchronous Rectifier | Yes |
| Control Features | Enable, Soft Start |
| Serial Interfaces | - |
| Output Phases | 1 |
| Duty Cycle (Max) | 94% |
| Clock Sync | No |
| Number of Outputs | 1 |
