VJ448XM
BRIDGE RECT 1PHASE 400V 10A VJManufacturer: Microsemi Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More

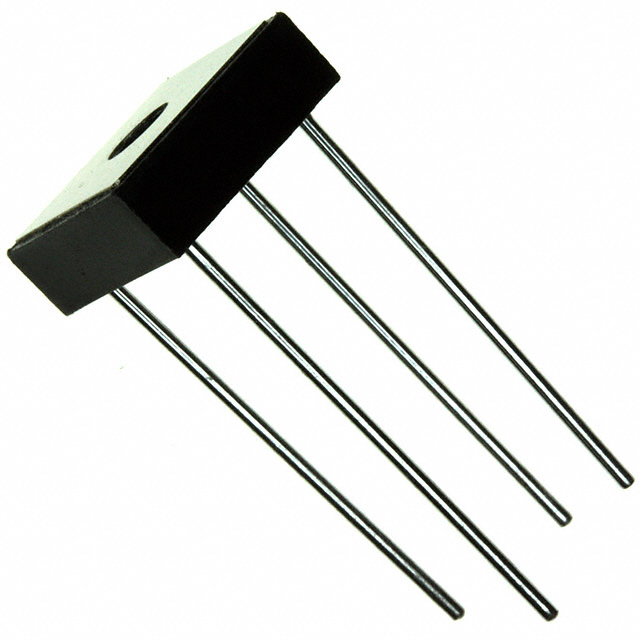

Microsemi Corporation VJ448XM is a standard single-phase bridge rectifier designed for robust power rectification applications. This through-hole component offers a 400V peak reverse voltage and a 10A average rectified forward current (Io). The VJ package, a 4-square configuration, facilitates efficient heat dissipation and reliable mounting. With a low reverse leakage current of 5 µA at 400V and a maximum forward voltage drop of 1.3V at 1A, the VJ448XM ensures high efficiency in power conversion circuits. Its operating temperature range of -55°C to 150°C (TJ) makes it suitable for demanding environments found in industrial power supplies, motor control, and automotive power systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, VJ |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | VJ |
| Voltage - Peak Reverse (Max) | 400 V |
| Current - Average Rectified (Io) | 10 A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 400 V |
