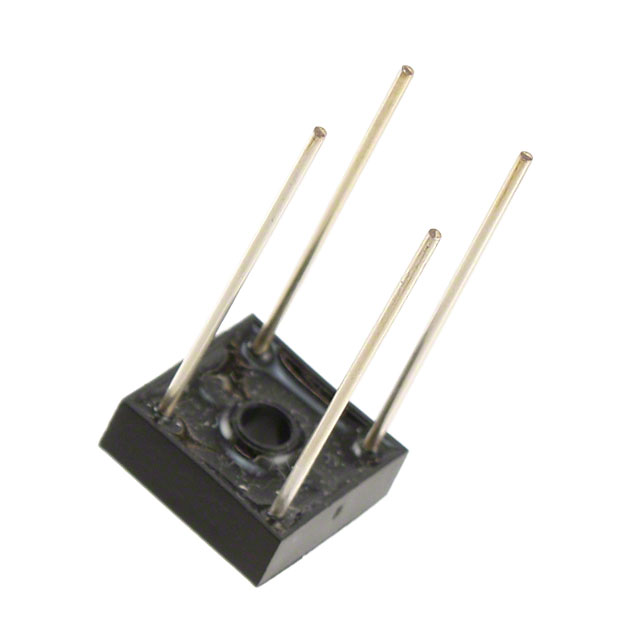

VJ247M
BRIDGE RECT 1PHASE 250V 10A VJManufacturer: Microsemi Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More
Microsemi Corporation VJ247M is a single-phase bridge rectifier designed for demanding applications. This component features a robust Avalanche technology, ensuring reliable performance under voltage transients. It offers an average rectified current handling capability of 10A and a peak reverse voltage rating of 250V. With a low reverse leakage current of 5 µA at 700V and a forward voltage drop of 1.3V at 1A, it contributes to efficient power conversion. The VJ247M is housed in a 4-Square, VJ through-hole package, suitable for various industrial and commercial equipment, including power supplies, motor control, and general rectification circuits. The device is available in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 4-Square, VJ |
| Mounting Type | Through Hole |
| Diode Type | Single Phase |
| Operating Temperature | - |
| Technology | Avalanche |
| Supplier Device Package | VJ |
| Voltage - Peak Reverse (Max) | 250 V |
| Current - Average Rectified (Io) | 10 A |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Current - Reverse Leakage @ Vr | 5 µA @ 700 V |
