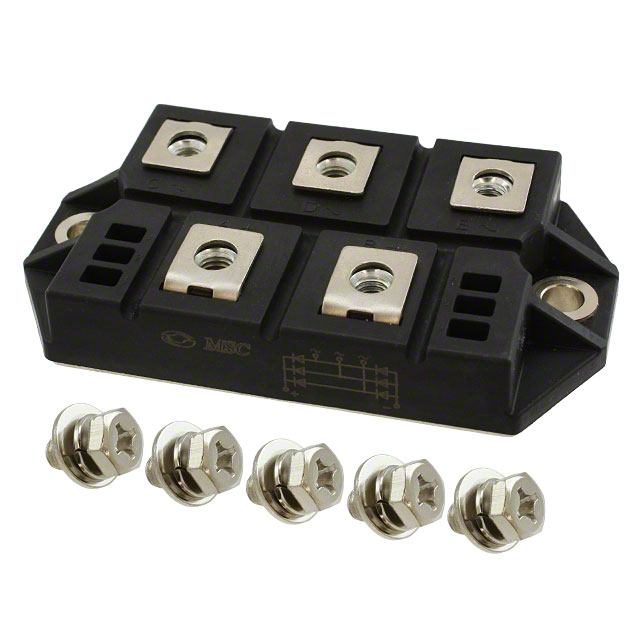

MSDM200-16
BRIDGE RECT 3P 1.6KV 200A M3-1Manufacturer: Microsemi Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More
Microsemi Corporation's MSDM200-16 is a three-phase bridge rectifier designed for high-power applications. This standard recovery rectifier features a **1.6 kV** repetitive peak reverse voltage (Vrrm) and a substantial **200 A** average rectified forward current (Io). With a forward voltage drop (Vf) of **1.45 V** at 200 A and a low reverse leakage current of **500 µA** at 1600 V, it offers efficient power conversion. The component is housed in the robust M3-1 package, suitable for chassis mounting, and operates across a wide temperature range of **-40°C to 150°C (TJ)**. This device is commonly utilized in industrial motor control, power supplies, and welding equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | M3-1 |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | M3-1 |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 200 A |
| Voltage - Forward (Vf) (Max) @ If | 1.45 V @ 200 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 1600 V |
