MSDM100-16

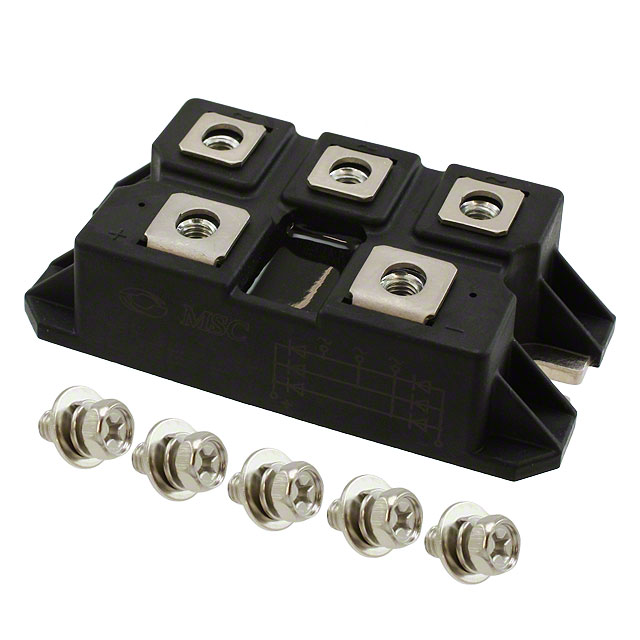

BRIDGE RECT 3P 1.6KV 100A M2-1Manufacturer: Microsemi Corporation
Categories: Bridge Rectifiers
Quality Control: Learn More
The Microsemi Corporation MSDM100-16 is a three-phase bridge rectifier module designed for high-power applications. Featuring a robust chassis mount design with the M2-1 package, this component offers a peak reverse voltage rating of 1.6 kV and an average rectified current capability of 100 A. Its standard technology ensures reliable performance with a maximum forward voltage of 1.9 V at 300 A. The module exhibits a low reverse leakage current of 500 µA at 1600 V and operates across a temperature range of -40°C to 150°C (TJ). This device is commonly utilized in industrial power supplies, motor control systems, and electric vehicle charging infrastructure.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Module |
| Mounting Type | Chassis Mount |
| Diode Type | Three Phase |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Technology | Standard |
| Supplier Device Package | M2-1 |
| Voltage - Peak Reverse (Max) | 1.6 kV |
| Current - Average Rectified (Io) | 100 A |
| Voltage - Forward (Vf) (Max) @ If | 1.9 V @ 300 A |
| Current - Reverse Leakage @ Vr | 500 µA @ 1600 V |
