MSD100-08

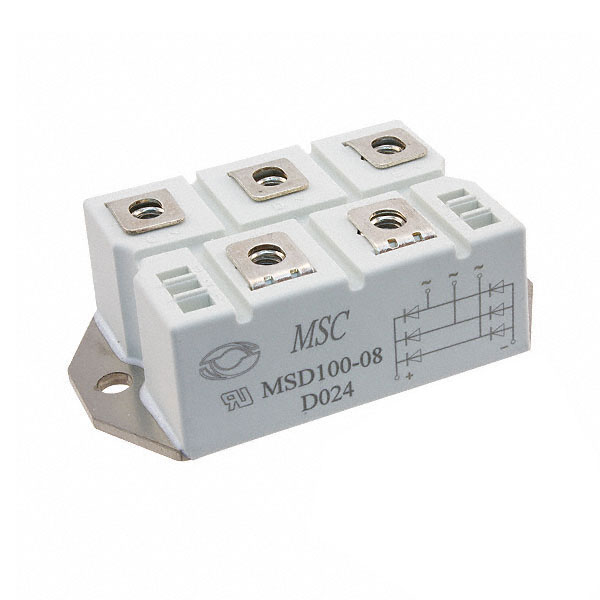

BRIDGE RECT 3PHASE 800V 100A M3

Manufacturer: Microsemi Corporation

Categories: Bridge Rectifiers

Quality Control: Learn More

Microsemi Corporation MSD100-08 is a three-phase bridge rectifier designed for demanding power applications. This standard recovery rectifier features a robust 800V peak reverse voltage rating and a continuous average rectified output current capability of 100A. The device exhibits a low forward voltage drop of 1.9V at 300A, contributing to efficient power conversion. Reverse leakage current is specified at 300 µA at 800V. The MSD100-08 is housed in an M3 package for chassis mounting, ensuring reliable thermal management. Operating across a wide temperature range of -40°C to 150°C (TJ), it is suitable for industrial power supplies, motor control, and welding equipment.

Additional Information

Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:
Technical Details:
PackagingBulk
Package / CaseSM3-20H
Mounting TypeChassis Mount
Diode TypeThree Phase
Operating Temperature-40°C ~ 150°C (TJ)
TechnologyStandard
Supplier Device PackageM3
Voltage - Peak Reverse (Max)800 V
Current - Average Rectified (Io)100 A
Voltage - Forward (Vf) (Max) @ If1.9 V @ 300 A
Current - Reverse Leakage @ Vr300 µA @ 800 V
