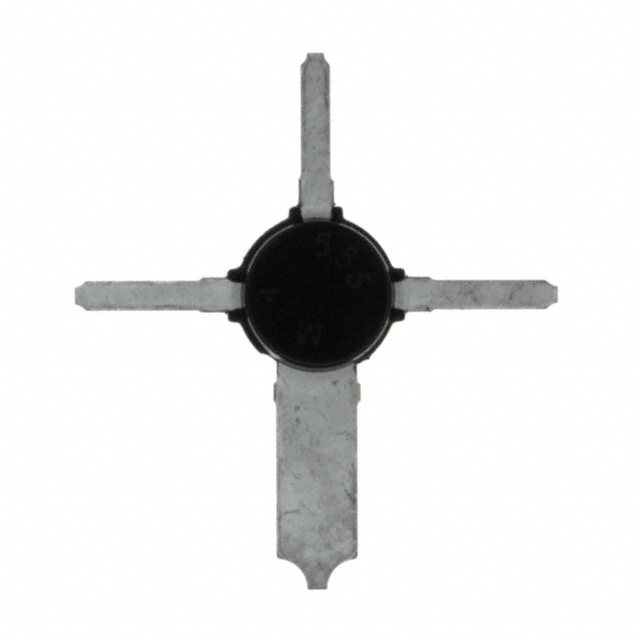

MRF555T
RF TRANS NPN 16V POWER MACROManufacturer: Microsemi Corporation
Categories: Bipolar RF Transistors
Quality Control: Learn More
The Microsemi Corporation MRF555T is an NPN bipolar RF power transistor designed for high-frequency applications. This surface mount component, presented in a Power Macro package on Tape & Reel, offers a 16V collector-emitter breakdown voltage and a maximum collector current of 500mA. With a power dissipation capability of 3W, it delivers a typical gain of 11dB to 12.5dB. The device exhibits a minimum DC current gain (hFE) of 50 at 100mA and 5V. Its robust construction and performance characteristics make it suitable for use in various RF power amplification circuits across industries such as telecommunications and industrial equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Power Macro |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 11dB ~ 12.5dB |
| Power - Max | 3W |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 16V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 50 @ 100mA, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | Power Macro |
