MRF555
RF TRANS NPN 16V POWER MACROManufacturer: Microsemi Corporation
Categories: Bipolar RF Transistors
Quality Control: Learn More

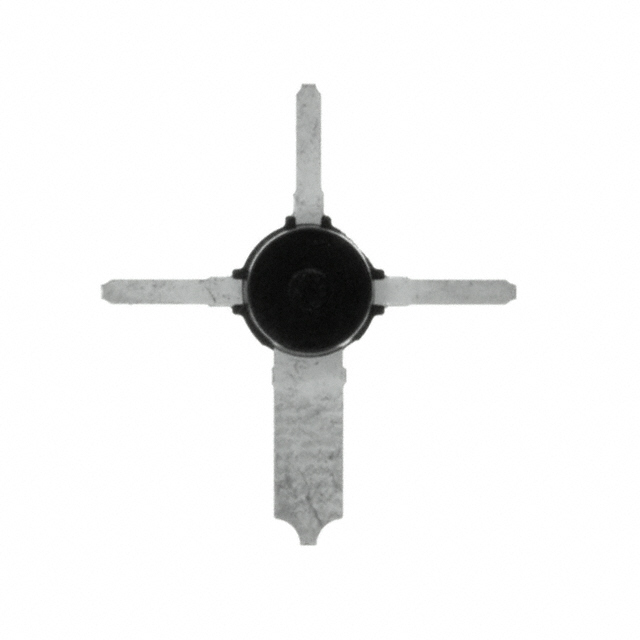

Microsemi Corporation MRF555 is an NPN bipolar RF transistor designed for high-power applications. This Surface Mount device, packaged in a Power Macro configuration, delivers up to 3W of output power with a collector current of 500mA. It features a minimum DC current gain (hFE) of 30 at 250mA and 5V, and provides a gain range of 11dB to 13dB. The MRF555 is suitable for use in demanding RF power amplifier circuits across various communication and industrial systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Power Macro |
| Mounting Type | Surface Mount |
| Transistor Type | NPN |
| Operating Temperature | - |
| Gain | 11dB ~ 13dB |
| Power - Max | 3W |
| Current - Collector (Ic) (Max) | 500mA |
| Voltage - Collector Emitter Breakdown (Max) | 16V |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 30 @ 250mA, 5V |
| Frequency - Transition | - |
| Noise Figure (dB Typ @ f) | - |
| Supplier Device Package | Power Macro |
