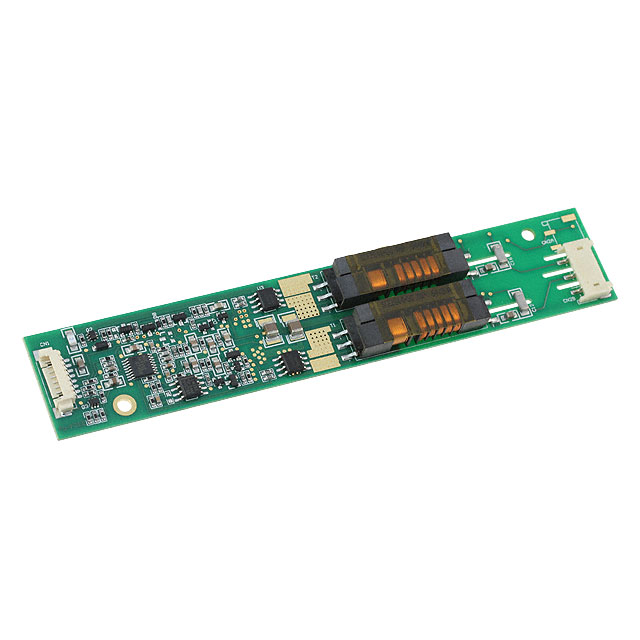

LXMG1626-12-66
MOD INVERTER CCFL DUAL 10W 12VManufacturer: Microsemi Corporation
Categories: Ballasts, Inverters
Quality Control: Learn More
Microsemi Corporation's LXMG1626-12-66, a component from the PanelMatch™ series, is a dual CCFL inverter designed for powering Cold Cathode Fluorescent Lamps (CCFL) and UV lamps. This chassis-mount module operates within a 10.8V to 13.2V input range, delivering a high 1800V output for lamp ignition and sustained operation. With a compact form factor measuring 5.24 inches long by 0.98 inches wide by 0.30 inches high (133mm x 25mm x 7.5mm), it is suitable for integration into space-constrained designs. The unit provides 10W of power, making it a robust solution for backlighting applications in displays and other equipment requiring CCFL or UV illumination. Industries such as industrial automation and medical devices commonly utilize this type of inverter for reliable lamp performance.
Additional Information
Series: PanelMatch™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Size / Dimension | 5.24"" L x 0.98"" W x 0.30"" H (133mm x 25mm x 7.5mm) |
| Mounting Type | Chassis Mount |
| Output | 1800V |
| Voltage - Input | 10.8 ~ 13.2V |
| Type | CCFL and UV Lamps |
Request a Quote
Clients Also Buy

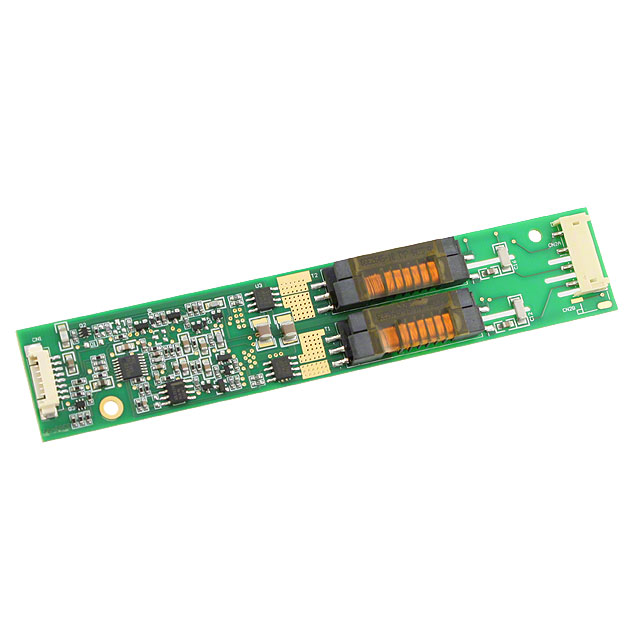

LXMG1626-05-65
DUAL 5W OUTPUT CCFL INVERTER
LXMG1626-12-67
MOD INVERTER CCFL DUAL 10W 12V

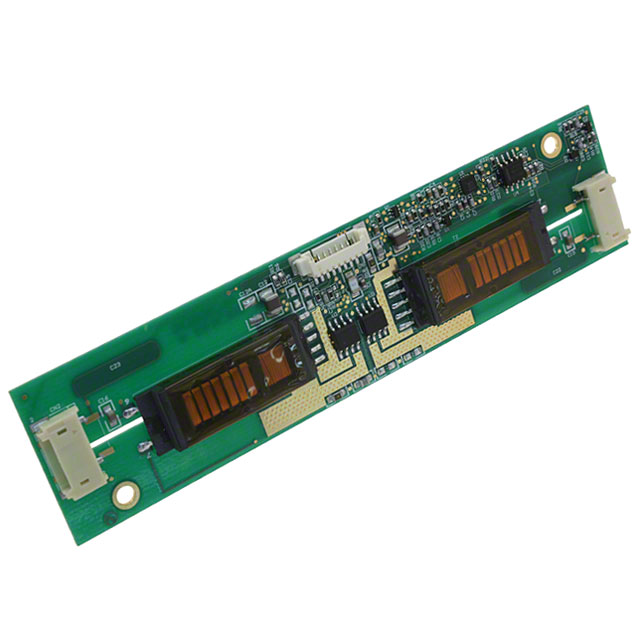

LXMG1627-05-41
