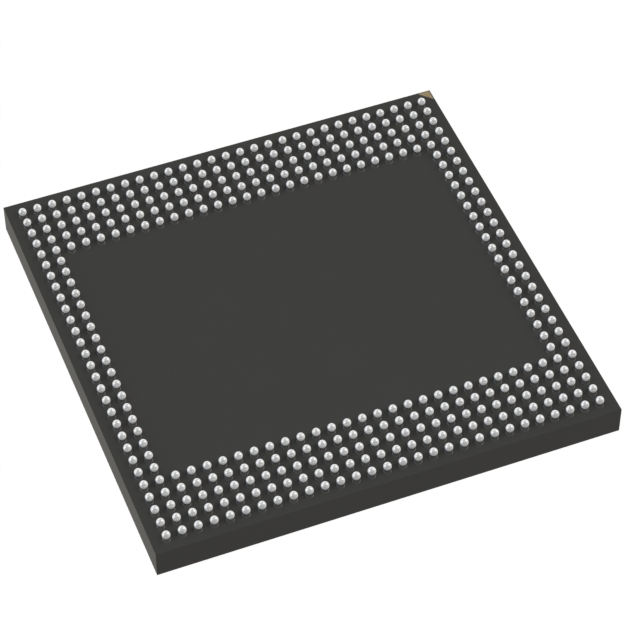

MT53B384M64D4NK-062 WT ES:B
IC DRAM 24GBIT 1.6GHZ 366WFBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More
Micron Technology Inc. MT53B384M64D4NK-062-WT-ES-B is a 24Gbit LPDDR4 SDRAM component. This high-density memory solution offers a clock frequency of 1.6 GHz, facilitating rapid data access for demanding applications. The memory organization is 384M x 64 bits, providing a substantial data throughput. Packaged in a 366-WFBGA (15x15) configuration, it is designed for surface mount applications. Operating within a temperature range of -30°C to 85°C (TC) and requiring a supply voltage of 1.1V, this device is suitable for performance-critical systems in automotive, industrial, and high-performance computing sectors.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 366-WFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 24Gbit |
| Memory Type | Volatile |
| Operating Temperature | -30°C ~ 85°C (TC) |
| Voltage - Supply | 1.1V |
| Technology | SDRAM - Mobile LPDDR4 |
| Clock Frequency | 1.6 GHz |
| Memory Format | DRAM |
| Supplier Device Package | 366-WFBGA (15x15) |
| Write Cycle Time - Word, Page | - |
| Memory Interface | - |
| Memory Organization | 384M x 64 |
| Programmable | Not Verified |
