MT47H128M8B7-37E:A
IC DRAM 1GBIT PAR 92FBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More

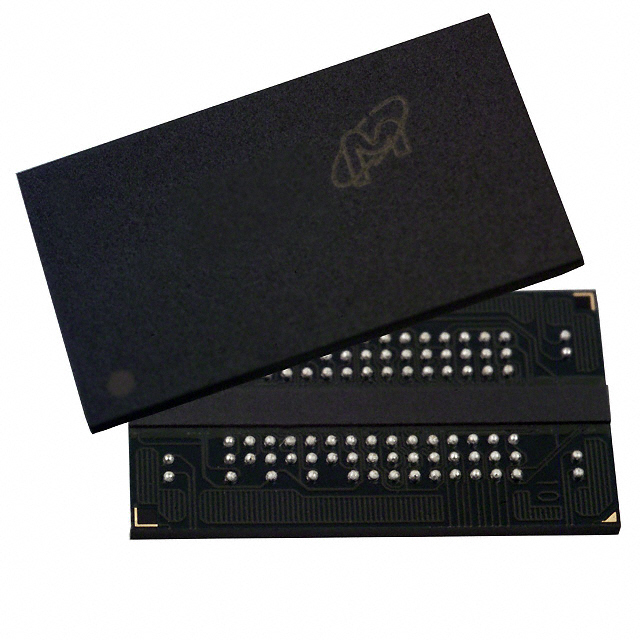

Micron Technology Inc. MT47H128M8B7-37E-A is a 1Gbit DDR2 SDRAM component. This memory IC offers a 128M x 8 organization, providing 1Gbit of volatile DRAM capacity. It operates at a clock frequency of 267 MHz with a minimum access time of 400 ps. The component features a parallel memory interface and is packaged in a 92-FBGA (11x19) form factor for surface mounting. The supply voltage range is 1.7V to 1.9V, and it has a write cycle time of 15ns. This device is suitable for applications in computing, networking, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 92-TFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 1Gbit |
| Memory Type | Volatile |
| Operating Temperature | 0°C ~ 85°C (TC) |
| Voltage - Supply | 1.7V ~ 1.9V |
| Technology | SDRAM - DDR2 |
| Clock Frequency | 267 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 92-FBGA (11x19) |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 400 ps |
| Memory Organization | 128M x 8 |
| Programmable | Not Verified |
