MT41K512M16VRN-107 IT:P
IC DRAM 8GBIT PAR 96FBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More

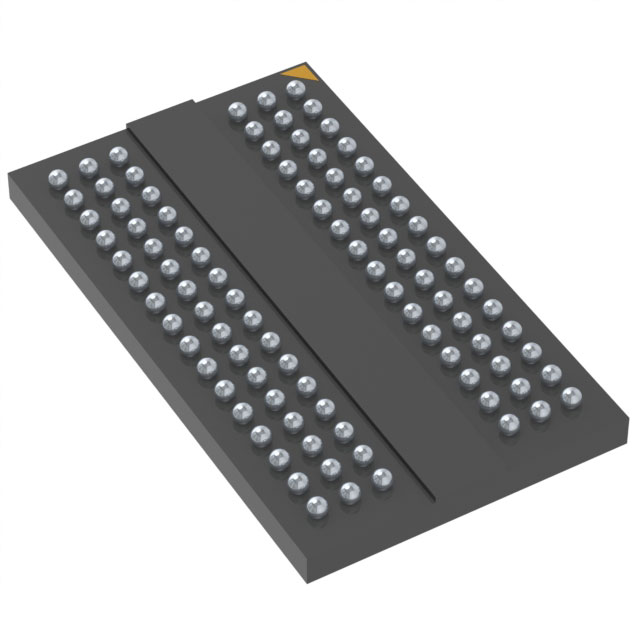

Micron Technology Inc. MT41K512M16VRN-107-IT-P is an 8Gbit DDR3L SDRAM memory component. This high-density memory solution features a parallel interface with a clock frequency of 933 MHz and an access time of 20 ns. The memory organization is 512M x 16, providing a substantial capacity for demanding applications. Operating within a voltage range of 1.283V to 1.45V, this device is designed for surface mount applications with its 96-FBGA (8x14) package. Its extended operating temperature range from -40°C to 95°C (TC) makes it suitable for industrial and automotive environments. The write cycle time for word and page operations is 15ns.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 96-TFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 8Gbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 95°C (TC) |
| Voltage - Supply | 1.283V ~ 1.45V |
| Technology | SDRAM - DDR3L |
| Clock Frequency | 933 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 96-FBGA (8x14) |
| Write Cycle Time - Word, Page | 15ns |
| Memory Interface | Parallel |
| Access Time | 20 ns |
| Memory Organization | 512M x 16 |
| Programmable | Not Verified |
