MT41J256M8HX-15E IT:D TR
IC DRAM 2GBIT PAR 78FBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More

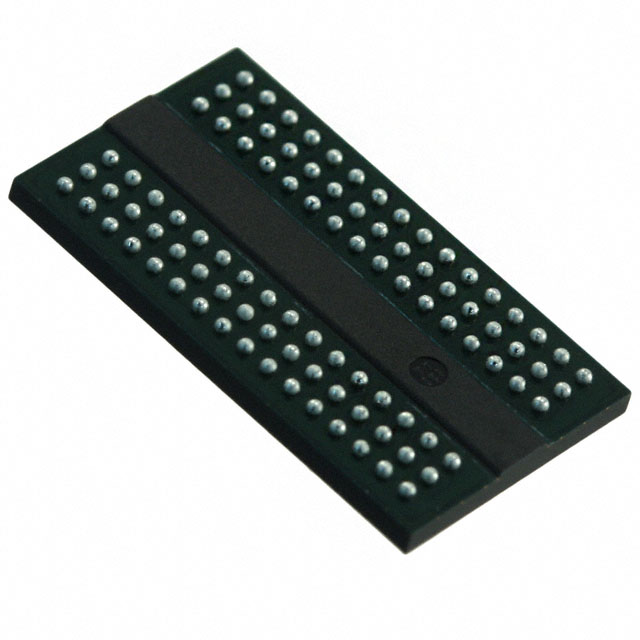

Micron Technology Inc. MT41J256M8HX-15E-IT-D-TR is a 2Gbit DDR3 SDRAM memory component. This device features a parallel memory interface and an organization of 256M x 8. It operates at a clock frequency of 667 MHz with an access time of 13.5 ns. The component is supplied in a 78-FBGA (9x11.5) surface mount package and is delivered on tape and reel. Key specifications include a supply voltage range of 1.425V to 1.575V and an industrial operating temperature range of -40°C to 95°C (TC). This DDR3 SDRAM is utilized in applications such as computing, networking, and automotive systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 78-TFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 2Gbit |
| Memory Type | Volatile |
| Operating Temperature | -40°C ~ 95°C (TC) |
| Voltage - Supply | 1.425V ~ 1.575V |
| Technology | SDRAM - DDR3 |
| Clock Frequency | 667 MHz |
| Memory Format | DRAM |
| Supplier Device Package | 78-FBGA (9x11.5) |
| Write Cycle Time - Word, Page | - |
| Memory Interface | Parallel |
| Access Time | 13.5 ns |
| Memory Organization | 256M x 8 |
| Programmable | Not Verified |
