MT29RZ4B2DZZHHWD-18I.84F
IC FLASH RAM 4GBIT PAR 162VFBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More

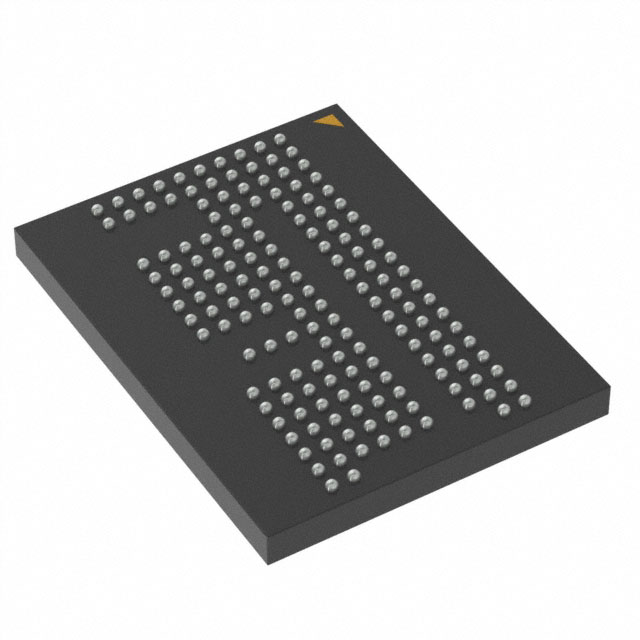

Micron Technology Inc. MT29RZ4B2DZZHHWD-18I-84F is a high-performance memory component featuring combined NAND Flash and LPDDR2 DRAM. This device offers 4Gbit of NAND Flash storage and 2Gbit of LPDDR2 volatile memory, operating with a parallel interface. The NAND Flash is organized as 128M x 32, and the LPDDR2 as 64M x 32. It supports a clock frequency of 533 MHz and operates at a 1.8V supply voltage. The component is housed in a 162-VFBGA package with dimensions of 10.5x8 mm. Designed for surface mounting, it is rated for an operating temperature range of -40°C to 85°C (TA). This versatile memory solution is suitable for applications in automotive, industrial, and consumer electronics where integrated, high-density storage and fast access are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 162-VFBGA |
| Mounting Type | Surface Mount |
| Memory Size | 4Gbit (NAND), 2Gbit (LPDDR2) |
| Memory Type | Non-Volatile, Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.8V |
| Technology | FLASH - NAND, DRAM - LPDDR2 |
| Clock Frequency | 533 MHz |
| Memory Format | FLASH, RAM |
| Supplier Device Package | 162-VFBGA (10.5x8) |
| Write Cycle Time - Word, Page | - |
| Memory Interface | Parallel |
| Memory Organization | 128M x 32 (NAND), 64M x 32 (LPDDR2) |
| Programmable | Not Verified |
