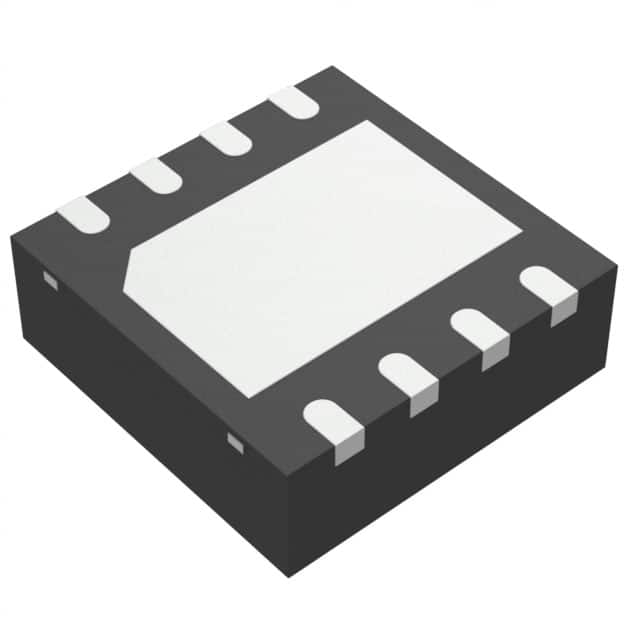

MT25QL128ABA1EW7-0SIT
IC FLASH 128MBIT SPI 8WPDFNManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More
Micron Technology Inc. MT25QL128ABA1EW7-0SIT is a 128Mbit NOR Flash memory device. This component features a Serial Peripheral Interface (SPI) with Quad I/O capability, enabling high-speed data transfers up to 133 MHz. The memory is organized as 16M x 8 bits and operates within a voltage range of 2.7V to 3.6V. Designed for surface mount applications, it is housed in an 8-WPDFN (6x5)(MLP8) package. The operating temperature range is from -40°C to 85°C. This non-volatile memory is suitable for demanding applications in industrial, automotive, and consumer electronics sectors where reliable data storage and fast read/write operations are critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 8-WDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Memory Size | 128Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 133 MHz |
| Memory Format | FLASH |
| Supplier Device Package | 8-WPDFN (6x5)(MLP8) |
| Write Cycle Time - Word, Page | 8ms, 2.8ms |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 16M x 8 |
| Programmable | Not Verified |
