MT25QL02GCBB8E12-0AUT
IC FLASH 2GBIT SPI 24TPBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More
Micron Technology Inc. MT25QL02GCBB8E12-0AUT is a 2Gbit NOR FLASH memory component. This device features a Quad SPI interface, enabling high-speed data transfers at a clock frequency of 133 MHz. The memory organization is 256M x 8, providing ample capacity for data storage. Designed for demanding applications, it operates within a voltage range of 2.7V to 3.6V and supports an extended industrial temperature range of -40°C to 125°C. The component is AEC-Q100 qualified, ensuring reliability for automotive applications. It is supplied in a 24-T-PBGA (6x8) package suitable for surface mount assembly. The write cycle time for a word/page is 1.8ms.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-TBGA |
| Mounting Type | Surface Mount |
| Memory Size | 2Gbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.7V ~ 3.6V |
| Technology | FLASH - NOR |
| Clock Frequency | 133 MHz |
| Memory Format | FLASH |

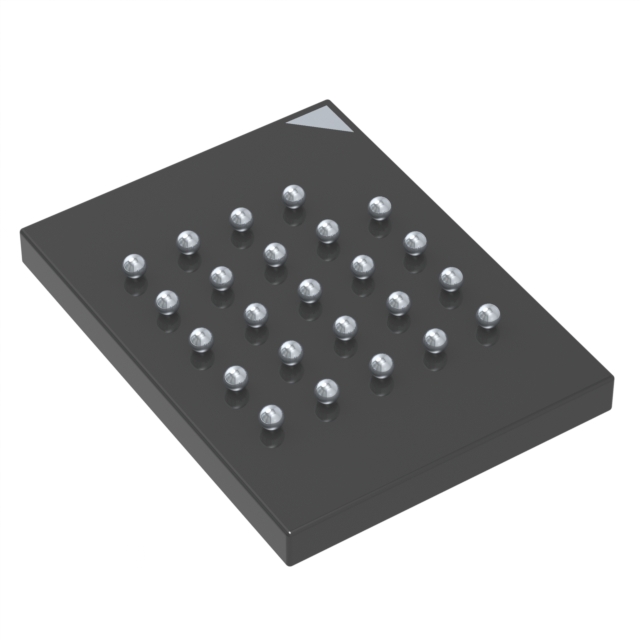

| Supplier Device Package | 24-T-PBGA (6x8) |
| Grade | Automotive |
| Write Cycle Time - Word, Page | 1.8ms |
| Memory Interface | SPI - Quad I/O |
| Memory Organization | 256M x 8 |
| Programmable | Not Verified |
| Qualification | AEC-Q100 |
