M58BW16FB5ZA3F
IC FLASH 16MBIT PARALLEL 80LBGAManufacturer: Micron Technology Inc.
Categories: Memory
Quality Control: Learn More
Micron Technology Inc. FLASH memory component, M58BW16FB5ZA3F, offers 16Mbit of non-volatile memory with a parallel NOR interface. This component features a fast 55 ns access time and a word/page write cycle time of 55 ns. Its memory organization is 512K x 32 bits, and it operates within a voltage range of 2.5V to 3.3V. The M58BW16FB5ZA3F is housed in an 80-LBGA package with dimensions of 10x12 mm, designed for surface mounting. This device is suitable for applications requiring high-speed parallel access to NOR flash memory, commonly found in industrial, automotive, and consumer electronics sectors. It operates reliably across an extended temperature range of -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: TrayDownload Free CAD Model:
Technical Details:
| Packaging | Tray |

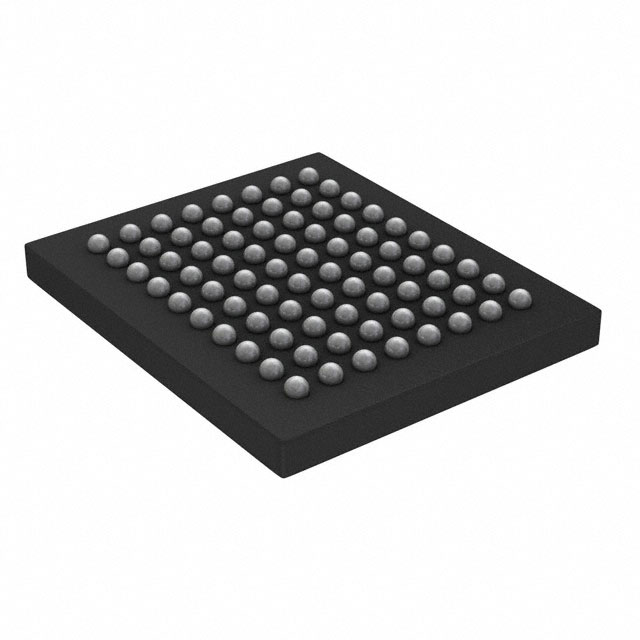

| Package / Case | 80-LBGA |
| Mounting Type | Surface Mount |
| Memory Size | 16Mbit |
| Memory Type | Non-Volatile |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 2.5V ~ 3.3V |
| Technology | FLASH - NOR |
| Memory Format | FLASH |
| Supplier Device Package | 80-LBGA (10x12) |
| Write Cycle Time - Word, Page | 55ns |
| Memory Interface | Parallel |
| Access Time | 55 ns |
| Memory Organization | 512K x 32 |
| Programmable | Not Verified |
