TVS410
TVS DIODE 100VWM 160VC AXIALManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
160V Clamp 910mA (8/20µs) Ipp Tvs Diode Through Hole A, Axial
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 21 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | A, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -65°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 910mA (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 100V |
| Supplier Device Package | A, Axial |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 111V |
| Voltage - Clamping (Max) @ Ipp | 160V |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
Request a Quote
Clients Also Buy

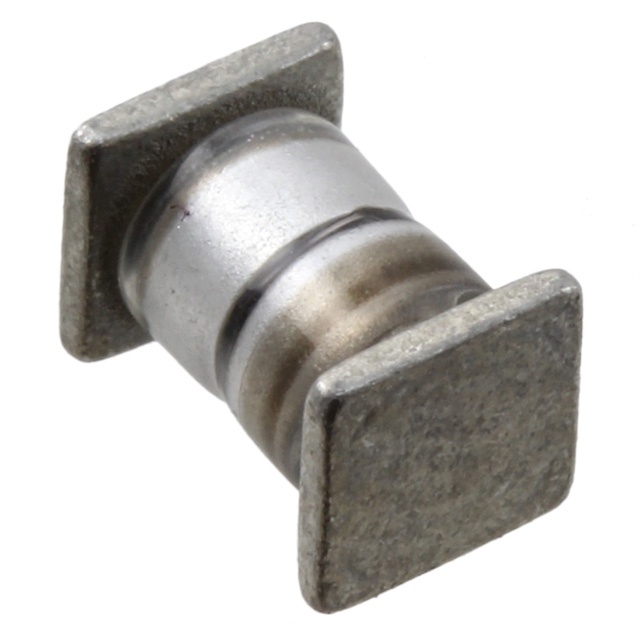

1N6118AUS
TVS DIODE 25.1VWM 45.7VC SQ-MELF
1N6173AUS
TVS DIODE 152VWM 273VC C SQ-MELF

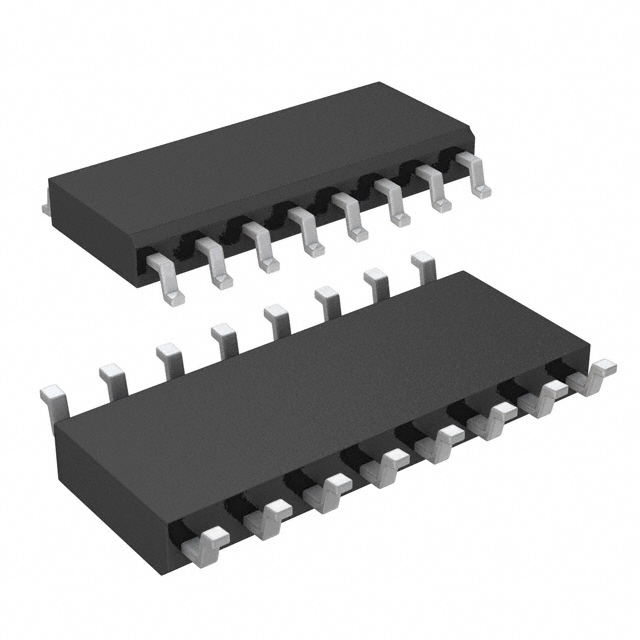

MXDA3KP33CAE3
