MSMCG11CAE3
TVS DIODE 11VWM 18.2VC SMCGManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More

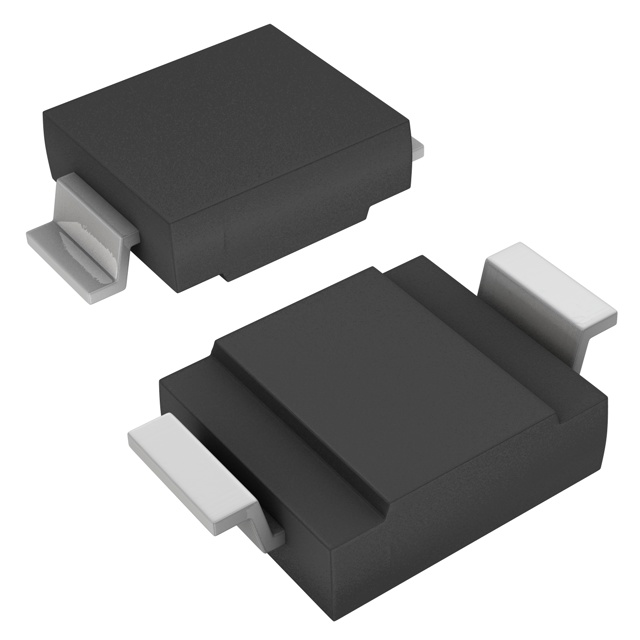

Microchip Technology MSMCG11CAE3 is a surface mount transient voltage suppressor (TVS) diode designed for robust protection. This component, housed in a DO-214AB (SMCG) package, features an 11V reverse standoff voltage and a 12.2V minimum breakdown voltage. Its clamping voltage is rated at 18.2V at a peak pulse current of 82.4A (10/1000µs), providing 1500W of peak pulse power dissipation. The MSMCG11CAE3 is qualified to MIL-PRF-19500 and operates across a wide temperature range of -65°C to 150°C. This unidirectional TVS diode is suitable for general-purpose applications, including automotive and industrial sectors requiring high reliability.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-215AB, SMC Gull Wing |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 82.4A |
| Voltage - Reverse Standoff (Typ) | 11V |
| Supplier Device Package | DO-214AB (SMCG) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 12.2V |
| Voltage - Clamping (Max) @ Ipp | 18.2V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
