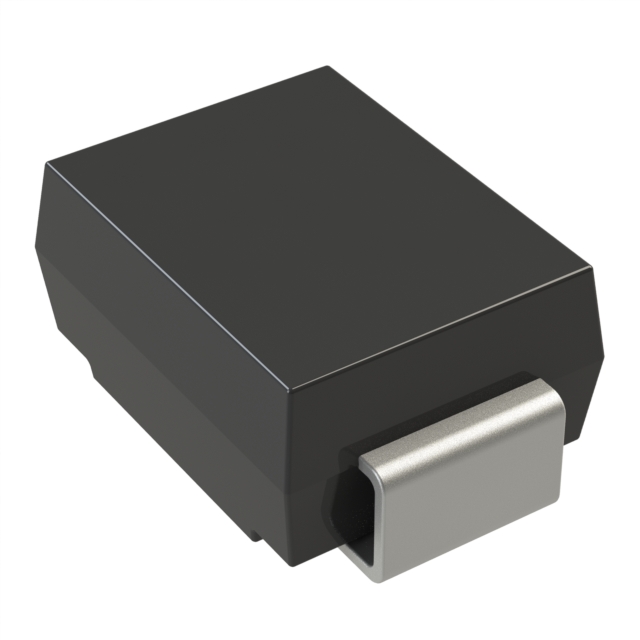

MSMBJSAC45E3
TVS DIODE 45VWM 77VC SMBJManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology MSMBJSAC45E3 is a unidirectional TVS diode designed for robust transient voltage suppression. This SMBJ series component offers a 45V reverse standoff voltage and a 77V maximum clamping voltage at a peak pulse current of 6.8A (10/1000µs). With a 500W peak pulse power rating and a low capacitance of 30pF @ 1MHz, it is suitable for general-purpose applications where precise transient protection is critical. The device operates across a wide temperature range of -65°C to 150°C and is packaged in the DO-214AA (SMBJ) surface mount configuration. Its MIL-PRF-19500 qualification signifies military-grade performance, making it a reliable choice for demanding environments in aerospace and defense sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-214AA, SMB |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 6.8A |
| Voltage - Reverse Standoff (Typ) | 45V |
| Supplier Device Package | DO-214AA (SMBJ) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 50V |
| Voltage - Clamping (Max) @ Ipp | 77V |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
