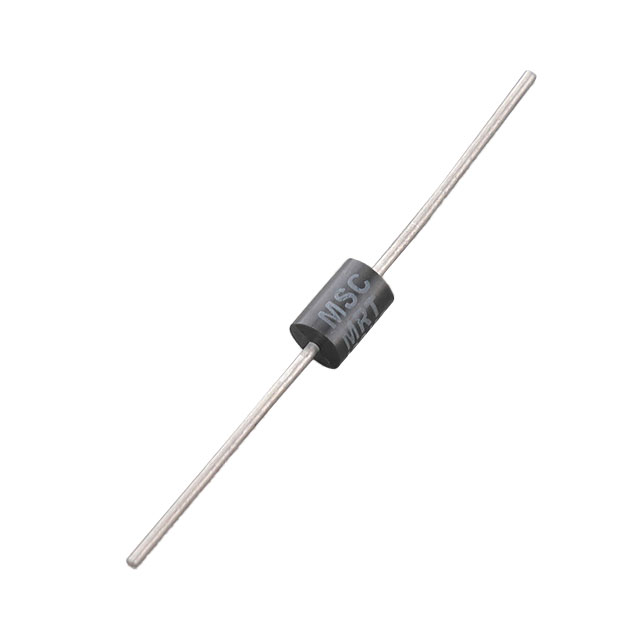

MRT100KP75CA
TVS DIODE 75VWM 147VC CASE 5AManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology's MRT100KP75CA is a high-power Transient Voltage Suppressor (TVS) diode. This bidirectional device is designed for robust protection against voltage transients. Featuring a standoff voltage of 75V, it offers a clamping voltage of 147V at a peak pulse current of 100kA (10/1000µs). The diode boasts a substantial peak pulse power rating of 100,000 Watts (100kW). Packaged in a DO-204AR (Case 5A) axial package for through-hole mounting and supplied in bulk, this component is qualified to MIL-PRF-19500 and operates across a wide temperature range of -65°C to 150°C. Its military grade designation and high power handling capabilities make it suitable for demanding applications in aerospace and defense sectors where reliable protection against transient overvoltages is critical.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-204AR, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 75V |
| Supplier Device Package | Case 5A (DO-204AR) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 83.3V |
| Voltage - Clamping (Max) @ Ipp | 147V |
| Power - Peak Pulse | 100000W (100kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
