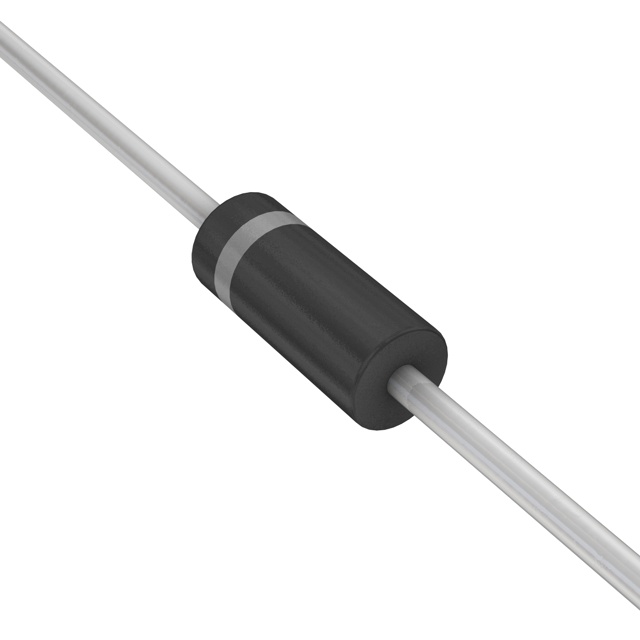

MP6KE33A/TR
TVS 33V 5% 600W UNIManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology MP6KE33A-TR is a unidirectional Transient Voltage Suppressor (TVS) diode designed for robust protection in demanding applications. This component, manufactured by Microchip Technology, features a 33V standoff voltage and a 5% tolerance. It offers a peak pulse power dissipation of 600W and a peak pulse current handling capability of 13.2A (10/1000µs). The clamping voltage at this peak current is a maximum of 45.7V. Qualifying under MIL-PRF-19500 with a military grade, it is suitable for applications requiring high reliability. The device operates within a temperature range of -65°C to 150°C (TJ) and is packaged in a T-18 axial package, provided on tape and reel (TR). Its breakdown voltage is a minimum of 31.4V. This TVS diode is frequently utilized in general-purpose protection scenarios across various industries where transient overvoltage mitigation is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | T-18, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 13.2A |
| Voltage - Reverse Standoff (Typ) | 28.2V |
| Supplier Device Package | T-18 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 31.4V |
| Voltage - Clamping (Max) @ Ipp | 45.7V |
| Power - Peak Pulse | 600W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
