MAPLAD7.5KP26CA
TVS DIODEManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology's MAPLAD7-5KP26CA is a high-power Transient Voltage Suppressor (TVS) diode designed for robust protection in demanding applications. This bidirectional device features a 26V reverse standoff voltage and a 28.9V minimum breakdown voltage. It offers a clamping voltage of 42.1V at a peak pulse current of 178A (10/1000µs), dissipating a peak pulse power of 7.5kW. Qualified to MIL-PRF-19500 and carrying a military grade, the MAPLAD7-5KP26CA is suitable for general-purpose protection in aerospace, defense, and industrial sectors where reliable surge suppression is critical. The component is supplied in a Mini-PLAD surface mount package and operates within an extended temperature range of -55°C to 150°C.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Nonstandard SMD |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 178A |
| Voltage - Reverse Standoff (Typ) | 26V |
| Supplier Device Package | Mini-PLAD |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.9V |
| Voltage - Clamping (Max) @ Ipp | 42.1V |
| Power - Peak Pulse | 7500W (7.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
Request a Quote
Clients Also Buy

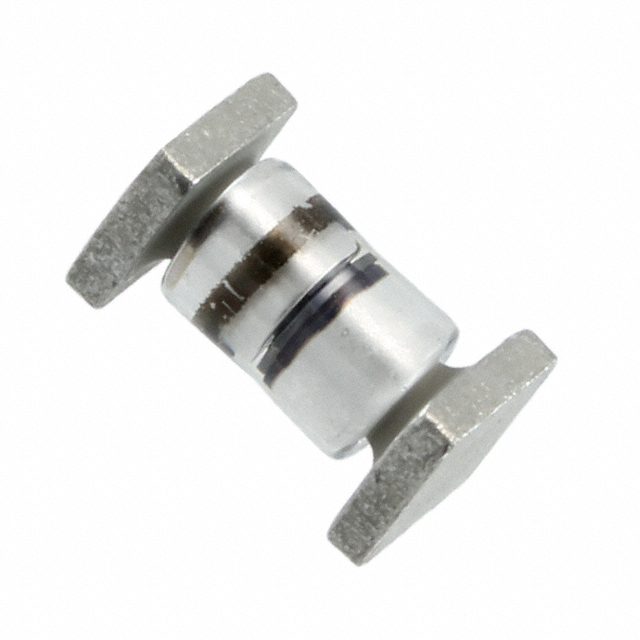

JANTX1N6109AUS/TR
BI-DIRECTIONAL TVS
MAPLAD30KP43CA
TVS DIODE 43VWM 69.4VC PLAD

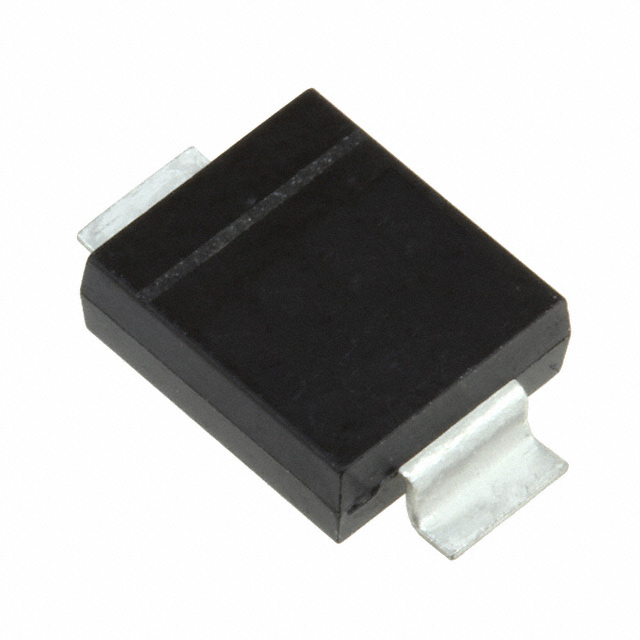

MSMCJ58A/TR
