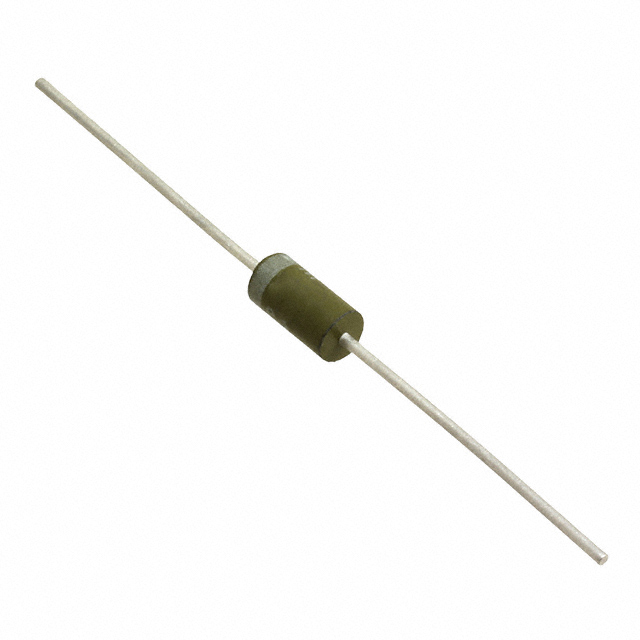

M1.5KE16AE3
TVS DIODE 13.6VWM 22.5VC CASE-1Manufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
The Microchip Technology M1-5KE16AE3 is a robust Transient Voltage Suppressor (TVS) diode, designed for critical applications requiring high reliability. This unidirectional device features a reverse standoff voltage of 13.6V and a precise clamping voltage of 22.5V at a peak pulse current (Ipp) of 67A. Its impressive 1500W peak pulse power dissipation capability, coupled with a 67A Ipp rating for a 10/1000µs waveform, ensures effective protection against transient overvoltages.
Engineered to military specifications (MIL-PRF-19500), this component is housed in a DO-201AA (DO-27, Axial) package, suitable for through-hole mounting. The M1-5KE16AE3 operates across a wide temperature range of -65°C to 150°C (TJ), making it ideal for demanding environments. Industry applications include aerospace, defense systems, and general-purpose industrial equipment where robust surge protection is paramount. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 40 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-201AA, DO-27, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 67A |
| Voltage - Reverse Standoff (Typ) | 13.6V |
| Supplier Device Package | CASE-1 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 15.2V |
| Voltage - Clamping (Max) @ Ipp | 22.5V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500 |
