JANTXV1N6475
TVS DIODE 40.3VWM 63.5VC AXIALManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More

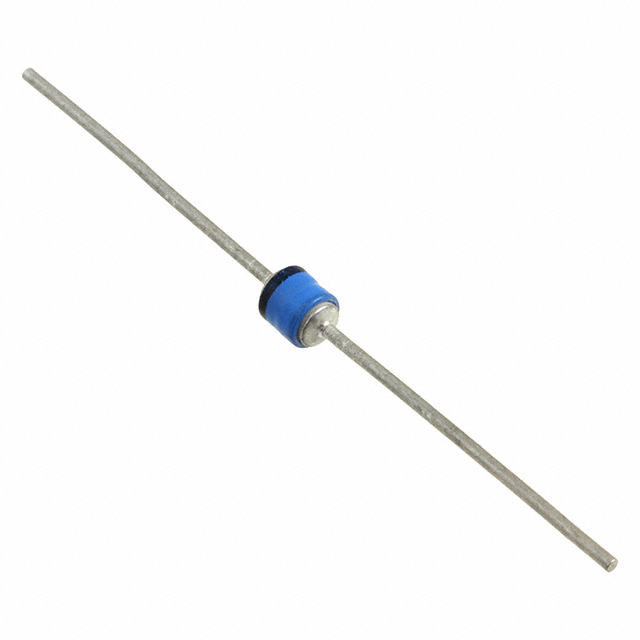

Microchip Technology TVS DIODE JANTXV1N6475 offers robust transient voltage suppression. This axial leaded device, qualified to MIL-PRF-19500/552, features a 40.3V reverse standoff voltage and a 63.5V maximum clamping voltage at 135A peak pulse current (8/20µs waveform). With a 1500W peak pulse power rating and a breakdown voltage of 43.7V minimum, it provides reliable protection in demanding environments. The operating temperature range is -55°C to 175°C. This component is suitable for general-purpose applications and is available in bulk packaging. Its construction is designed for through-hole mounting.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | G, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 135A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 40.3V |
| Supplier Device Package | Axial |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 43.7V |
| Voltage - Clamping (Max) @ Ipp | 63.5V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/552 |
