JANTX1N6474US/TR
TVS DIODE 30.5VWM 47.5VC G-MELFManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology JANTX1N6474US-TR is a unidirectional TVS diode designed for robust transient voltage suppression. This device offers a reverse standoff voltage of 30.5V and a breakdown voltage of 33V. It features a clamping voltage of 47.5V at a peak pulse current (Ipp) of 32A, providing 1.5kW of peak pulse power dissipation.

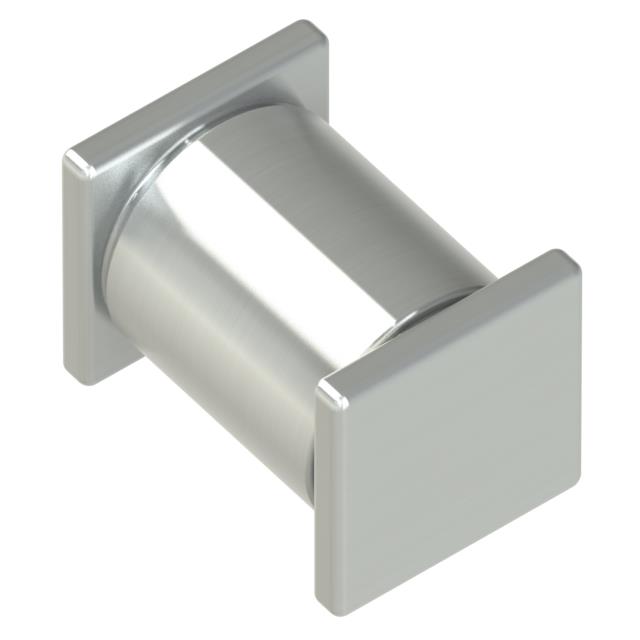

The JANTX1N6474US-TR is qualified to MIL-PRF-19500/552, indicating its suitability for high-reliability applications. It is supplied in a D-5C package (SQ-MELF, C), suitable for surface mounting and delivered in tape and reel (TR) packaging. Its operating temperature range is -55°C to 175°C. This component is commonly utilized in general-purpose applications across various industries requiring protection against voltage transients.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SQ-MELF, C |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 32A |
| Voltage - Reverse Standoff (Typ) | 30.5V |
| Supplier Device Package | D-5C |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 33V |
| Voltage - Clamping (Max) @ Ipp | 47.5V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/552 |
