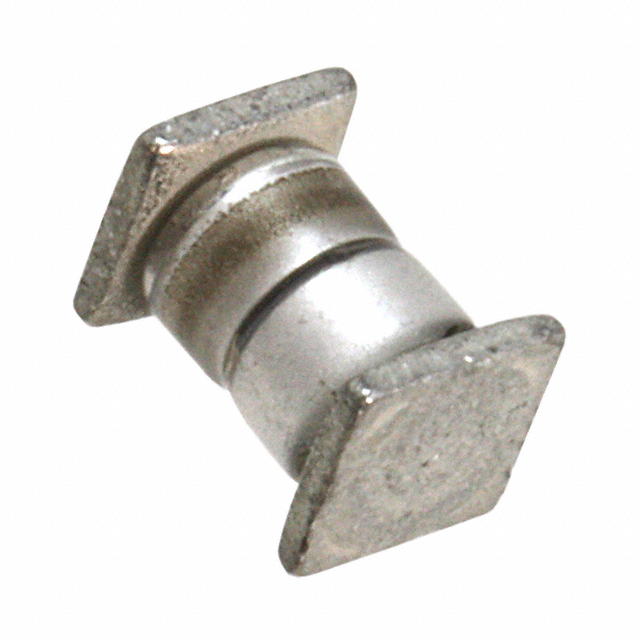

JANTX1N6468US
TVS DIODE 51.6VWM 78.5VCManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology JANTX1N6468US is a unidirectional TVS diode designed for robust transient voltage suppression. It features a reverse standoff voltage of 51.6V and a breakdown voltage of 54V (minimum). The device offers a low clamping voltage of 78.5V at a peak pulse current of 35A (8/20µs), with a peak pulse power rating of 500W.
This component is qualified to MIL-PRF-19500/551, indicating its suitability for demanding military applications. It is housed in an E-MELF surface mount package and operates across an extended temperature range of -55°C to 175°C. The JANTX1N6468US is commonly employed in general-purpose protection circuits where reliable overvoltage suppression is critical, including aerospace and defense systems.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | E-MELF |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 35A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 51.6V |
| Supplier Device Package | - |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 54V |
| Voltage - Clamping (Max) @ Ipp | 78.5V |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/551 |
