JANTX1N6156A
TVS DIODE 29.7VWM 53.6VCManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More

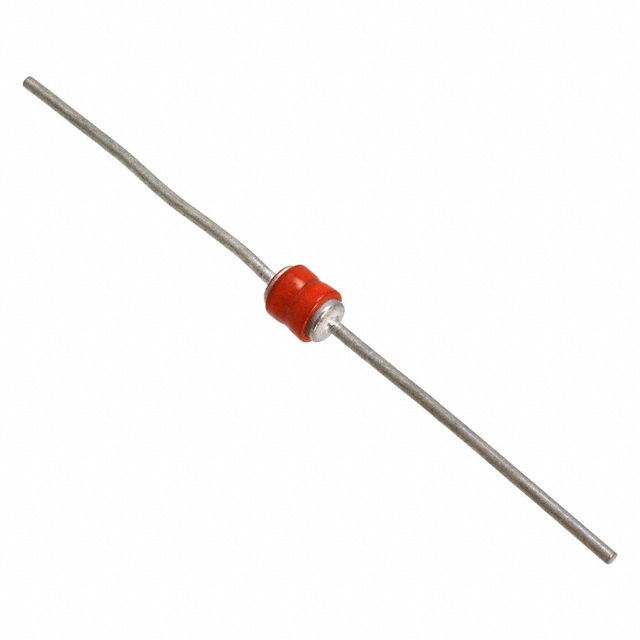

Microchip Technology JANTX1N6156A is a high-reliability Transient Voltage Suppressor (TVS) diode designed for robust overvoltage protection. This axial-leaded, through-hole component features a 29.7V reverse standoff voltage and a 53.6V maximum clamping voltage at a peak pulse current of 28A (10/1000µs). With a 1500W (1.5kW) peak pulse power rating, it is suitable for demanding applications requiring protection against transient voltage events. The device operates over an extended temperature range of -55°C to 175°C. This component meets MIL-PRF-19500/516 qualification, making it ideal for military and aerospace systems, as well as general-purpose industrial applications where extreme reliability is paramount.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | G, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 28A |
| Voltage - Reverse Standoff (Typ) | 29.7V |
| Supplier Device Package | - |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 37.1V |
| Voltage - Clamping (Max) @ Ipp | 53.6V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
