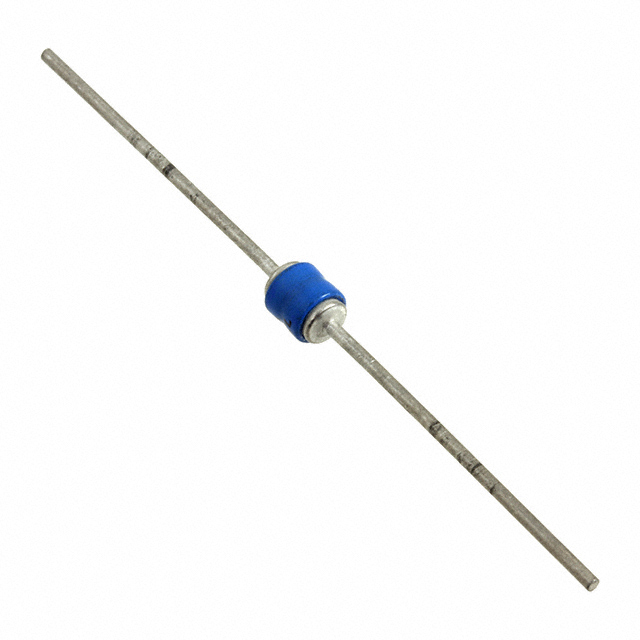

JANTX1N6139A
TVS DIODE 5.7VWM 11.2VC C AXIALManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology JANTX1N6139A is a military-grade Transient Voltage Suppressor (TVS) diode designed for robust protection. This unidirectional device features a reverse standoff voltage of 5.7V and a breakdown voltage of 7.13V (minimum). It offers a clamping voltage of 11.2V at a peak pulse current of 133.9A (10/1000µs). With a peak pulse power rating of 1500W, this TVS diode is suitable for applications requiring high surge energy absorption. The component is qualified to MIL-PRF-19500/516 and operates across a wide temperature range of -55°C to 175°C. Packaged in a C, Axial configuration for through-hole mounting, it is commonly utilized in general-purpose protection applications where reliability under harsh conditions is critical.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | G, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 133.9A |
| Voltage - Reverse Standoff (Typ) | 5.7V |
| Supplier Device Package | C, Axial |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 7.13V |
| Voltage - Clamping (Max) @ Ipp | 11.2V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
