JANTX1N6114AUS
TVS DIODE 16.7VWM 30.5VCManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More

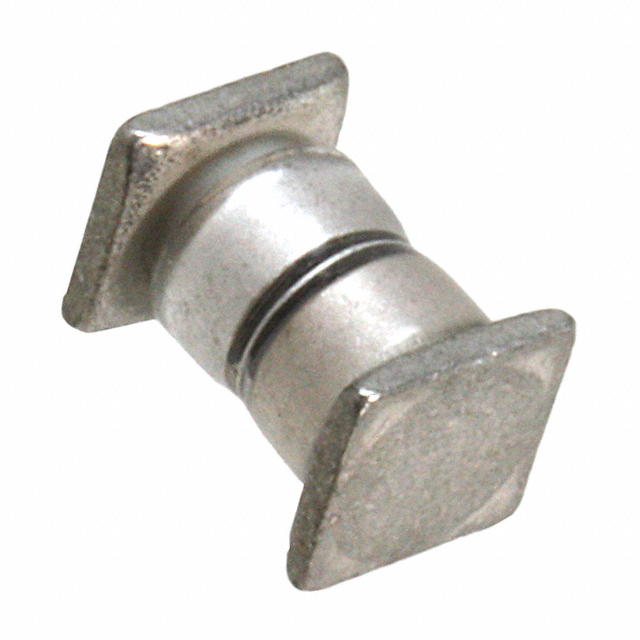

Microchip Technology JANTX1N6114AUS is a military-grade transient voltage suppressor (TVS) diode designed for robust protection. This surface mount device, housed in an E-MELF package, offers a reverse standoff voltage of 16.7V and a breakdown voltage of 20.9V (minimum). It features a maximum clamping voltage of 30.5V at a peak pulse current of 16.4A (10/1000µs), with a peak pulse power rating of 500W. The operating temperature range extends from -55°C to 175°C. This component adheres to MIL-PRF-19500/516 qualification standards, making it suitable for demanding applications in aerospace and defense.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | E-MELF |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 16.4A |
| Voltage - Reverse Standoff (Typ) | 16.7V |
| Supplier Device Package | - |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 20.9V |
| Voltage - Clamping (Max) @ Ipp | 30.5V |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
