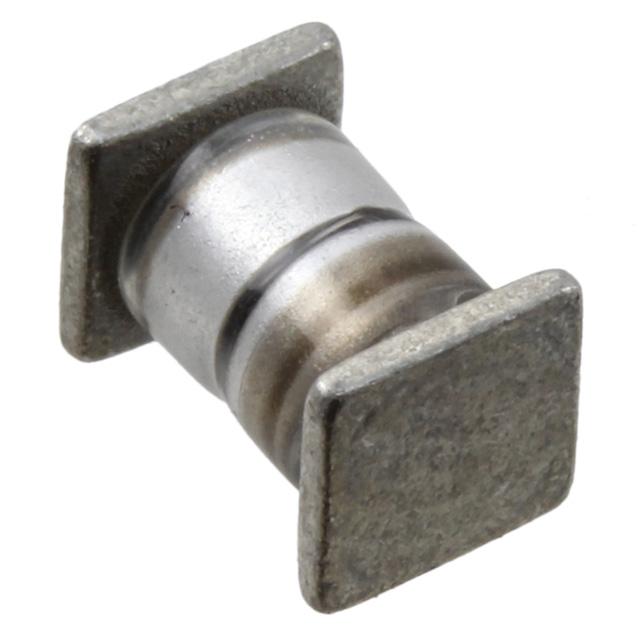

JANTX1N6113AUS/TR
TVS DIODE 15.2VWM 27.7VCManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology JANTX1N6113AUS-TR is a high-reliability transient voltage suppressor (TVS) diode designed for demanding applications. This bidirectional device offers a reverse standoff voltage of 15.2V and a breakdown voltage of 19V minimum. It provides robust protection with a clamping voltage of 27.7V at a peak pulse current of 18A (10/1000µs), dissipating 500W of peak pulse power. Qualified to MIL-PRF-19500/516, this component is suitable for military and general-purpose applications. The JANTX1N6113AUS-TR is supplied in an E-MELF package for surface mounting and comes on a tape and reel for automated assembly. Its operating temperature range is -55°C to 175°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | E-MELF |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 18A |
| Voltage - Reverse Standoff (Typ) | 15.2V |
| Supplier Device Package | - |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 19V |
| Voltage - Clamping (Max) @ Ipp | 27.7V |
| Power - Peak Pulse | 500W |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/516 |
