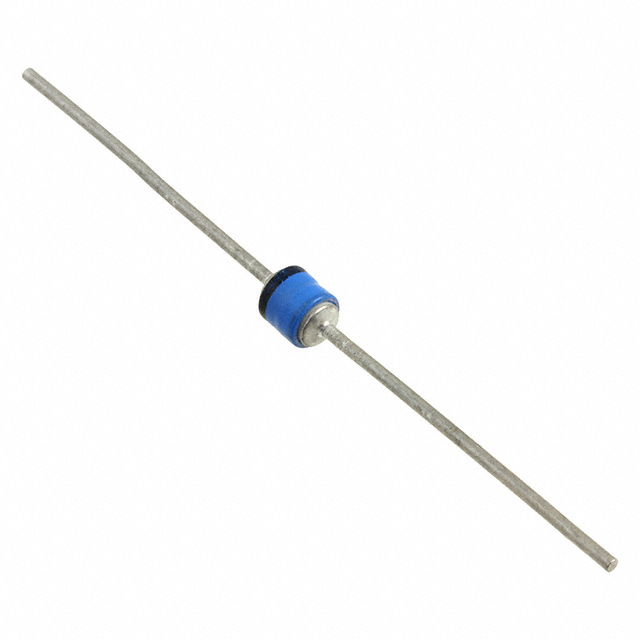

JAN1N6476
TVS DIODE 51.6VWM 78.5VC AXIALManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
Microchip Technology's JAN1N6476 is a military-grade transient voltage suppressor (TVS) diode designed for robust protection. This axial-packaged device offers a reverse standoff voltage of 51.6V and a breakdown voltage of 54V minimum. It provides effective clamping at 78.5V for a peak pulse current of 107A (8/20µs), with a peak pulse power rating of 1500W. The JAN1N6476 is qualified to MIL-PRF-19500/552 and operates across a wide temperature range of -55°C to 175°C. Its through-hole mounting facilitates integration into various circuit designs. This component is commonly utilized in aerospace and defense applications requiring stringent reliability and surge protection capabilities.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: 25 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | G, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 107A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 51.6V |
| Supplier Device Package | Axial |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 54V |
| Voltage - Clamping (Max) @ Ipp | 78.5V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Grade | Military |
| Qualification | MIL-PRF-19500/552 |
