1N6050A
TVS DIODE 25VWM 41.4VC DO13Manufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More

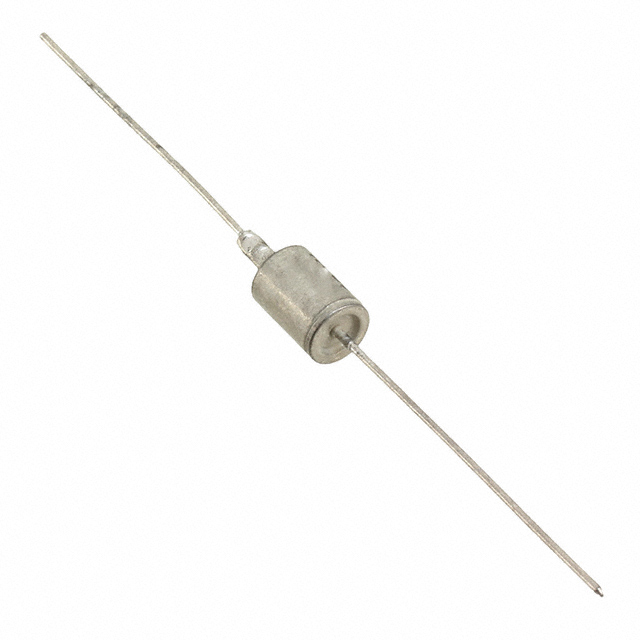

The Microchip Technology 1N6050A is a Zener type Transient Voltage Suppressor (TVS) diode in a DO-13 package. It offers a 25V reverse standoff voltage and a 28.5V minimum breakdown voltage. This unidirectional device is rated for a 36A peak pulse current (10/1000µs), providing 1500W of peak pulse power dissipation. The clamping voltage at 36A is a maximum of 41.4V. Operating across a wide temperature range of -55°C to 175°C, this component is suitable for general-purpose applications. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | DO-13 |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 36A |
| Voltage - Reverse Standoff (Typ) | 25V |
| Supplier Device Package | DO-13 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 28.5V |
| Voltage - Clamping (Max) @ Ipp | 41.4V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
