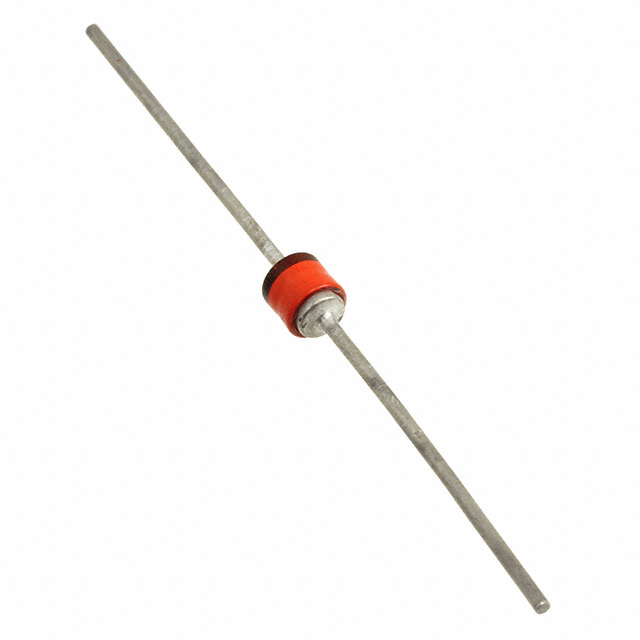

1N5610
TVS DIODE 30.5VWM 47.6VC G AXIALManufacturer: Microchip Technology
Categories: TVS Diodes
Quality Control: Learn More
The Microchip Technology 1N5610 is a unidirectional TVS diode designed for transient voltage suppression. Featuring a reverse standoff voltage of 30.5V, this component offers a breakdown voltage of 33V (minimum). Its peak pulse current handling capability is 32A (10/1000µs), with a maximum clamping voltage of 47.6V at this current. The device boasts a peak pulse power rating of 1500W (1.5kW). Encased in a G, Axial package suitable for through-hole mounting, the 1N5610 operates effectively across a wide temperature range from -55°C to 175°C. This diode finds application in general-purpose protection schemes across various industrial sectors.
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | G, Axial |
| Mounting Type | Through Hole |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 32A |
| Voltage - Reverse Standoff (Typ) | 30.5V |
| Supplier Device Package | G, Axial |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 33V |
| Voltage - Clamping (Max) @ Ipp | 47.6V |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
