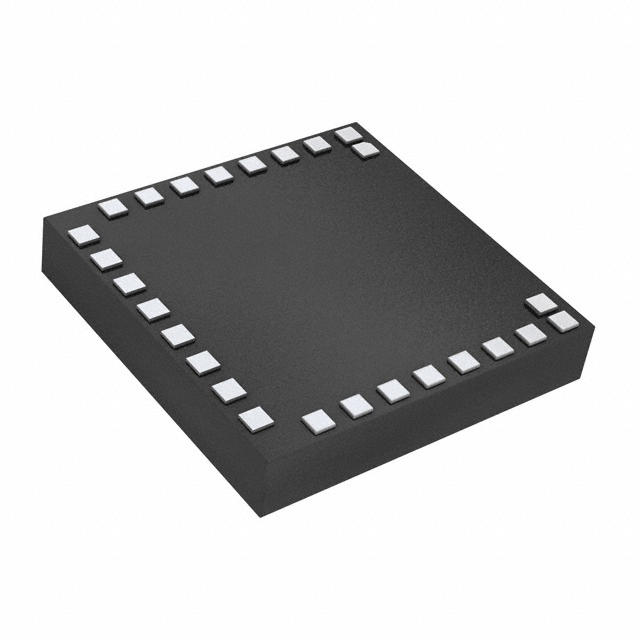

HV230G1-G
IC ULTRASOUND SWITCH 1:1 28LLGAManufacturer: Microchip Technology
Categories: Special Purpose
Quality Control: Learn More
Microchip Technology HV230G1-G is an 8-channel ultrasound switch IC featuring a 1:1 multiplexer/demultiplexer configuration. This SPST switch operates with dual supply voltages ranging from ±40V to ±160V and a single supply from 40V to 200V. The device boasts a -3dB bandwidth of 50MHz and a maximum on-state resistance of 38 Ohms, making it suitable for high-frequency ultrasound applications. The HV230G1-G is provided in a 26-LLGA (6x6) surface-mount package, supplied in trays. Its robust design supports demanding applications across various industrial sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 26-UFLGA |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Ultrasound |
| On-State Resistance (Max) | 38Ohm |
| -3db Bandwidth | 50MHz |
| Supplier Device Package | 26-LLGA (6x6) |
| Voltage - Supply, Single (V+) | 40V ~ 200V |
| Voltage - Supply, Dual (V±) | ±40V ~ 160V |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Channels | 8 |
