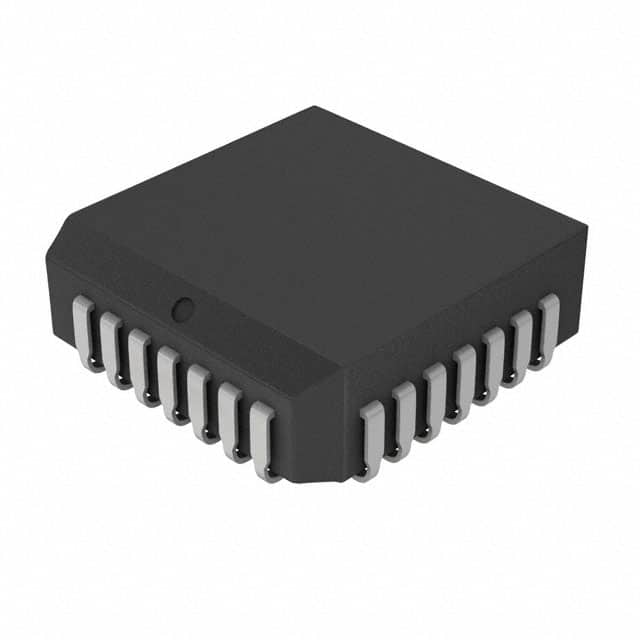

HV2301PJ-G
IC ULTRASOUND SWITCH 1:1 28PLCCManufacturer: Microchip Technology
Categories: Special Purpose
Quality Control: Learn More
Ultrasound Switch IC 8 Channel 28-PLCC (11.5x11.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 6 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Ultrasound |
| On-State Resistance (Max) | 38Ohm |
| -3db Bandwidth | 50MHz |
| Supplier Device Package | 28-PLCC (11.5x11.5) |
| Voltage - Supply, Single (V+) | 40V ~ 200V |
| Voltage - Supply, Dual (V±) | ±40V ~ 160V |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Channels | 8 |
