HV20822TQ-G-M931
16-CHANNEL HIGH VOLTAGE ANALOG SManufacturer: Microchip Technology
Categories: Special Purpose
Quality Control: Learn More

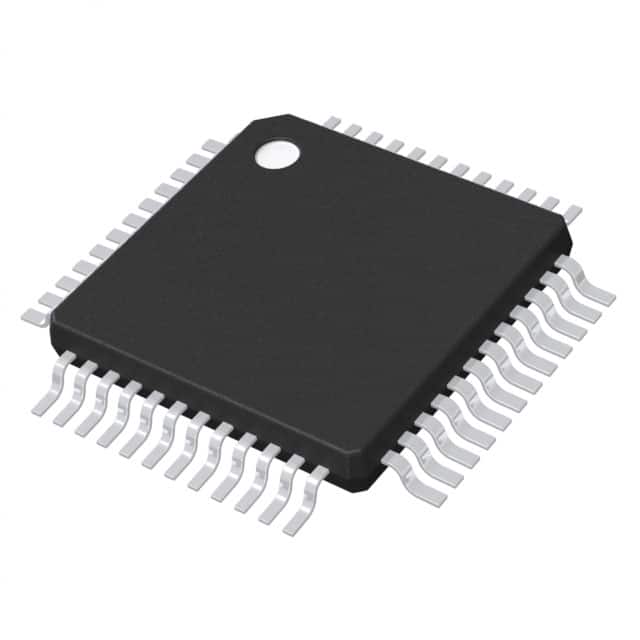

Microchip Technology's HV20822TQ-G-M931 is a 16-channel high-voltage analog switch designed for demanding ultrasound applications. This SPST (Single Pole Single Throw) switch operates with a single supply voltage ranging from 4.75V to 12.6V. Featuring a low on-state resistance of 32 Ohms maximum, the HV20822TQ-G-M931 ensures efficient signal routing. The component is housed in a compact 48-TQFP (7x7) surface-mount package, supplied on tape and reel. Its 16-channel multiplexer/demultiplexer configuration makes it suitable for complex signal path management in medical imaging systems. The operating temperature range is from 0°C to 70°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 22 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-TQFP |
| Mounting Type | Surface Mount |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Applications | Ultrasound |
| On-State Resistance (Max) | 32Ohm |
| -3db Bandwidth | - |
| Supplier Device Package | 48-TQFP (7x7) |
| Voltage - Supply, Single (V+) | 4.75V ~ 12.6V |
| Voltage - Supply, Dual (V±) | - |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Number of Channels | 16 |
